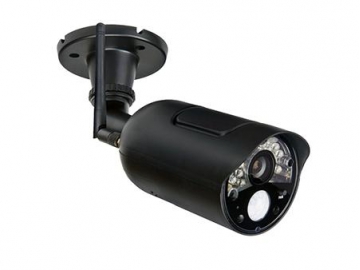

HD (720P) Wireless Security Camera System with Android /iOS App, CM812732

HD (720P) Wireless Security Camera System with Android /iOS App, CM812732
HD (720P) Wireless Security Camera System with Android /iOS App, CM812732
HD (720P) Wireless Security Camera System with Android /iOS App, CM812732
Request a Quote
  • CM812732 wireless monitor allows for remote monitoring from both phones and the monitor, for a remote security monitoring of your home.
  • This monitor features a 7-inch monitor screen and up to 4 cameras to capture multiple images on one screen.

The monitor is equipped with a PIR sensor for warm object detection within the surveillance range, while a night vision feature allows the camera to continue monitoring, even in dark or dim environments.

This wireless monitor is often used in yards, home security, public building security, and other locations.

Specifications
Operating Frequency Range 2.400GHz~2.483GHz
TX Power 16dBm (typical)
RX Sensitivity -81dBm
Type of Spread Spectrum Used FHSS
Type of Modulation Used GFSK
Data Rate 4Mbps
Transmitting Range 300m line of sight
Camera
Image sensor type 1/4" Color 1.0 Megapixel CMOS Image sensor
Effective Pixel 1280 (H) x 720 (V)
Power requirement 9V DC 600mA
Image Resolution Cam x 2 : 720px1 @ 15 fps
Cam x 2 : VGAx2 @ 25 fps
Cam x 4 : QVGAx4 @ 25 fps
/ VGA x 4 @ 15 fps
Lens 3.6mm F2.0
Viewing Angle (Diagonal) 70° (FOV)
IR LED / Night Vision Range 16 LEDs / 850nm, 12m
PIR angle (horizontal) 60°
PIR range (25°C) 5m
Weather proof IP65
Operation temperature -20~40°C
Camera Housing Material ABS
LCD Monitor
LCD Panel size 7 Inch
LCD Resolution 800 RGB (H) x 480 (V)
View Angle H: 140° V: 110°
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Operating Humidity 0% ~ 85%
Power requirement 5V DC 2A
