HD (720P) Wireless Security Camera System with Android /iOS App, CM824922

HD (720P) Wireless Security Camera System with Android /iOS App, CM824922
HD (720P) Wireless Security Camera System with Android /iOS App, CM824922
Request a Quote
  • The CM824922 wireless monitor is equipped with a large, 9 inch monitor screen and up to 4 cameras, allowing for remote monitoring from your phone. More than one picture can be displayed simultaneously on the screen, making the larger screen ideal for small markets, hotels, and home monitoring systems.
  • The monitor features a PIR sensor and is designed for motion detection of warm objects within the surveillance range. Night vision allows for camera monitoring even in dark or dim environments.
Specifications
Operating Frequency Range 2.400GHz~2.483GHz
TX Power 16dBm (typical)
RX Sensitivity -81dBm
Type of Spread Spectrum Used FHSS
Type of Modulation Used GFSK
Data Rate 4Mbps
Transmitting Range 300m line of sight

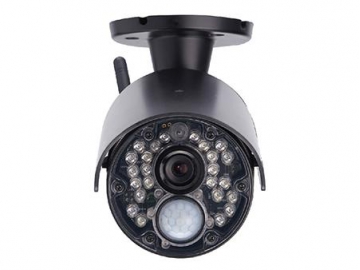

Camera
Image sensor type 1/4" Color 1.0 Megapixel CMOS Image sensor
Effective Pixel 1280 (H) x 720 (V)
Power requirement 9V DC 600mA
Image Resolution Cam x 2 : 720px1 @ 15 fps
Cam x 2 : VGAx2 @ 25 fps
Cam x 4 : QVGAx4 @ 25 fps
/ VGA x 4 @ 15 fps
Lens 3.6mm F2.0
Viewing Angle (Diagonal) 70° (FOV)
IR LED / Night Vision Range 24 LEDs / 850nm, 15m
PIR angle (horizontal) 60°
PIR range (25°C) 5m
Weather proof IP65
Operation temperature -20~40°C
Camera Housing Material ABS
LCD Monitor
LCD Panel size 9 Inch
LCD Resolution 800 RGB (H) x 480 (V)
View Angle H: 140° V: 110°
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Operating Humidity 0% ~ 85%
Power requirement 5V DC 2A
