Alloy Steel Weld On Hook Manufacturer

Alloy Steel Weld On Hook

Request a Quote

About Us: http://shenli-rigging.com/2-20-alloy-steel-weld-on-hook.html

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
● It is equipped with high intensity cast latch.
● Ultimate load is 5 times the Working Load Limit.

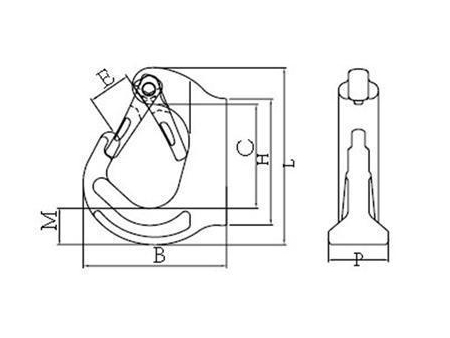

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	B±1.5	C±1.2	E±0.5	H±2	M±1	P±1	L±2
8-SLR019-2.0T	0.83	2	10	92	67	30	81	23.3	34	114
8-SLR019-3.0T	1.2	3	15	106	73.5	33.2	116	33.6	36	129
8-SLR019-5.0T	2.46	5	25	133	94	35	159	44	43.5	171
8-SLR019-8.0T	3.26	8	40	136.5	94	33.31	159	44	51	177
8-SLR019-10.0T	5.17	10	50	169.5	134.5	50.54	194	54.7	53	223
