Airlay Flexiloft System for Coir Fiber Carding

Airlay Flexiloft System for Coir Fiber Carding
Airlay Flexiloft System for Coir Fiber Carding
Airlay Flexiloft System for Coir Fiber Carding
Airlay Flexiloft System for Coir Fiber Carding
Airlay Flexiloft System for Coir Fiber Carding
Airlay Flexiloft System for Coir Fiber Carding
Airlay Flexiloft System for Coir Fiber Carding
Request a Quote

Airlay flexiloft system for coir fiber carding is mainly used to card the fibers processed by last process and process these fibers into uniform fiber web. For instance, the coir fiber processed by opener can be more smooth and more even after processed by coir fiber carding machine.

Basic parameters of this coir fiber airlay flexiloft system are listed below, contact us for more detail, we can also redesign for you:
Effective Machine Width 1800~4000mm
Mesh-out Speed 2000~6000mm/min
Cylinder Speed 900~1100r/min
Arch Model 0.4~0.6mm
General power 9~18kw
Size 1800~4000mm
Weight 2T-5T
Brand YUELONG
Features of Coir Fiber Airlay Flexiloft System :

The main frame is welded by 10mm carbon steel plate and steel channel. Otherwise, the main frame receives special handling for reliving the stress totally.

The cylinder adopts claw spike board or specially made steel spike which do little damage to fibers, leading to low loss.

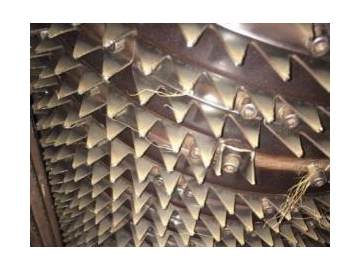

  • Claw Spike Board

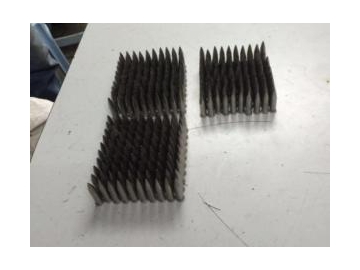

  • Steel Spike
  • The blower for conveying cotton is high speed centrifugal fan with adjustable air volume and balanced running.

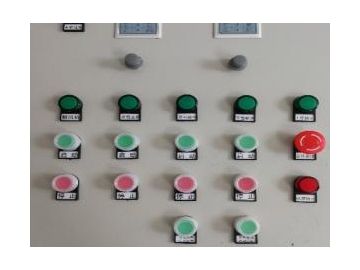

  • The feeding process is controlled by PLC, which is easy to operate. Problems like material stuck can be easily solved.

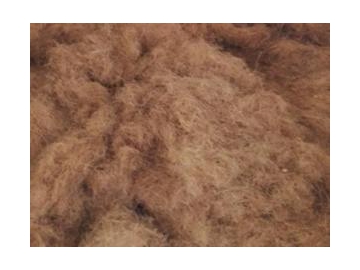

  • Before Processing

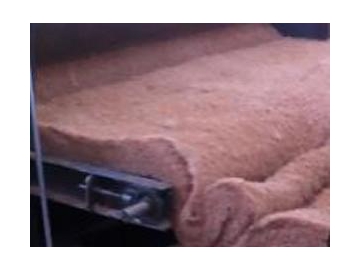

  • After Processing
