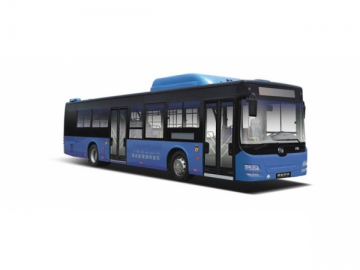

Diesel Electric Hybrid Bus, 10m/12m
Model: 10m DD6109CHEV1, 12m DD6129CHEV1
Here at Huanghai, as a leading new energy bus manufacturer in China wholly owned by SG Automotive Group, we offer a selection of 10m DD6109CHEV1 and 12m DD6129CHEV1 hybrid electric buses which use a diesel-electric powertrain. These hybrid buses are an excellent solution for cleaner and smarter transit in any city.
Features
1. The transit bus is designed with a unique hybrid power coupled structure that ensures infinitely variable speeds. It integrates three functions including dynamic coupling, ECVT and automatic clutch, thus greatly improving driving comfort. Compared with traditional urban bus, it is more energy efficient.
2. Due to state of the art integral body construction, the hybrid electric bus comes with stronger, lighter and safer body than common buses. Additionally, it can provide larger passenger capacity and lower energy consumption.
3. Traction battery the hybrid electric bus uses is a proven LiMn2O4 battery.
| Model | |||
| Engine | Model | YC6J180-42 | YC6J180-42 |
| Displacement (L) | 6.494 | 6.494 | |
| Max. torque (N.m/r/min) | 650/1200-1700RPM | 650/1200-1700RPM | |
| Max. output power (kW/r/min) | 132/2500 | 132/2500 | |
| Emission standard | Euro IV | Euro IV | |
| Fuel tank capacity (L) | 2×100 | 130/2×100 | |
| Chassis | Transmission | ECVT ) | ECVT |
| Suspension system | Steel plate spring | Steel plate spring/air spring | |
| Tyre specs. | 295/80R22.5 | 275/70R22.5, 295/80R22.5 | |
| Steering system | Integral power steering electric power steering | Integral power steering electric power steering | |
| Service brake | Pneumatic, double circuit, front disc and rear drum brakes | Pneumatic, double circuit, front disc and rear drum brakes | |
| Parking brake | Energy storage spring, air brake | Energy storage spring, air brake | |
| Size (mm) | L×W×H | 10490×2482×3410 | 11980×2532×3370 |
| Wheelbase | 5000 | 5800 ( Air spring ) 5900 ( Steel plate spring ) | |
| Minimum ground clearance | 200 | 200 | |

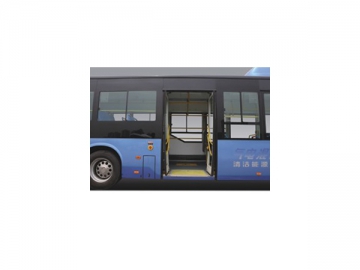

| Main body configuration | Door | Front and back double-leaf inward swinging doors | Front and back double-leaf inward swinging doors |
| Windows | Sliding windows with aluminum frames (integral bonding window is optional) | Sliding windows with aluminum frames (integral bonding window is optional) | |
| Service facilities | Optional: Electronic guideboard, get-off/reverse monitor, curtain, wheel cover, coin box, bus stop annunciator, etc. | Optional: Electronic guideboard, get-off/reverse monitor, curtain, wheel cover, coin box, bus stop annunciator, etc. | |
| Seats | 24-36 | 24-42 | |
| Weight (kg) | Maximum total mass | 16500 | 18000 |
| Curb weight | 11350 ( without air conditioning ) / 11750 ( with air conditioning ) | 12550 ( without air conditioning ) / 12980 ( with air conditioning ) | |
| Others | Hybrid electric system | CATARC Hybrid system (CHS), Made in China | CATARC Hybrid system (CHS), Made in China |
| Energy storage system | LiMn2O4 battery ( 510V 70Ah ) | LiMn2O4 battery ( 510V 70Ah ) | |
| Charging port | Chinese standard DC charging socket | Chinese standard DC charging socket | |
| Max. speed (km/h) | ≥69 | ≥69 | |
