C75-100-150 C Purlin Machine
Request a Quote
Xinhonghua C75-100-150 C purlin machine has the ability to produce three types of C purlins with a width of 75mm, 100mm and 150mm. Change of product size is by manually changing the spacers. This machine can roll form 0.5-1.2mm thick materials and features a production speed of 30m/min.
Samples
Model | C75-100-150 |
Dimension | 7800*1600*1600mm |
Hydraulic Motor Power | 7.5kW |
Forming Steps | 13 steps 3 steps for reshaping |
Forming Speed | 0-30m/min |
Voltage | 380V/50HZ/3PH |
Effective Width | 75mm,100mm,150mm |
Flange Height | 50mm |
Material Thickness | 0.5-1.2 mm |
Control System | PLC Computer Control |
Rollers | Gcr15 steel with heat treatment, plate hard chrome on the surface of rollers |
Material for Shaft | 40Cr steel |
Material for Cutter | Cr12Mov |
-

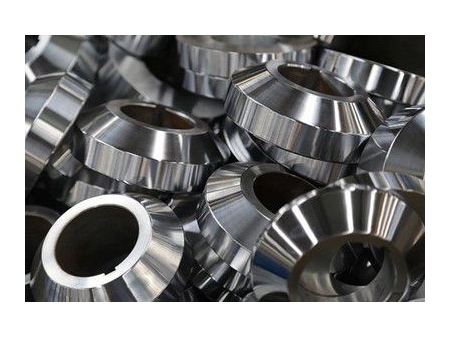

Rollers are manufactured from high quality bearing steel GCr15 and are processed with CNC lathes and heat treatment. Hard-chrome coating is for option. With a feeding material guide roller, the body frame is welded with 400# H type steel for longer service life.
-

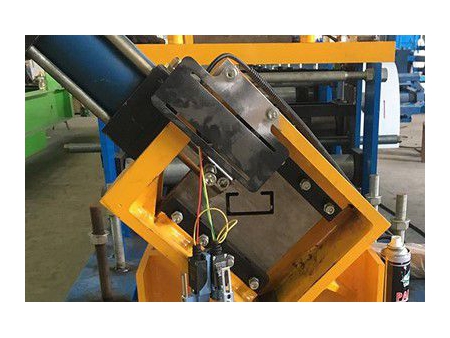

Hydraulic post-cutting system: cutter is made by heat treated Cr12MoV steel.
-

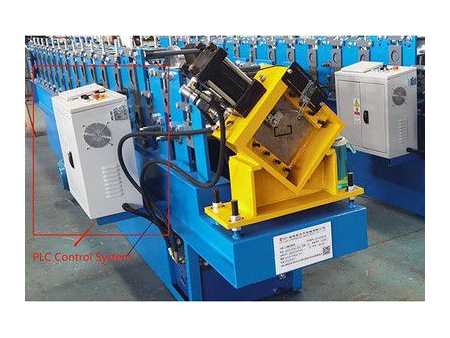

PLC Control System
- Main Purlin Forming Machine
- 3 Tons Manual Uncoiler
- Automatic Guide Device
- Automatic Reshaping Device
- PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
- Hydraulic Motor System
- Pre-punching Holes Device( the buyer decide the size of punching holes )
- Pre-cutting Device
- Run Out Table
- Operation Manual
