PCD/PCBN Internal Threading Tool
Description

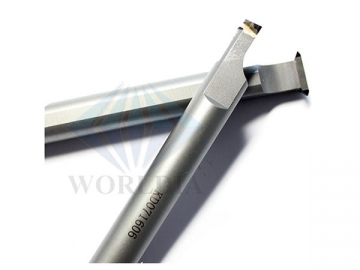

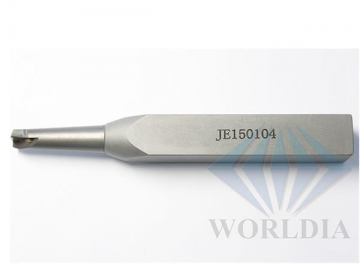

The PCD and PCBN blanks feature high hardness, high abrasive resistance, high thermal conductivity and strong toughness. The PCD/PCBN internal threading tool has longer service life and it can guarantee higher precision of thread profile and thread pitch.
Application
The PCD internal threading tool is used for copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal work pieces.

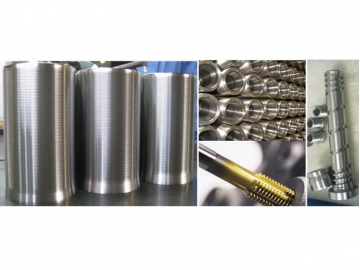

The PCBN internal threading tool is used for hardened steel, hard cast iron, grey cast iron and iron series metal work pieces. For example, it can be used to process thread cast iron cylinder sleeves for cars.

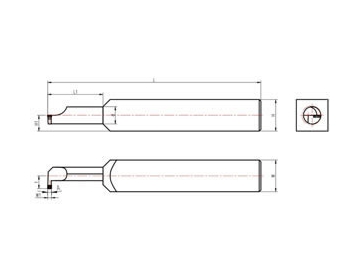

| Drawing of PCD/PCBN Internal Threading Tool | Dimension (mm) | |||||||||
| | P | Er° | H1 | H | W/D | L | d | L1 | f | R |
| 0.5 | 60 | 10 | 20 | 20 | 120 | 12 | 25 | 9 | 0.4 | |
| 0.75 | 60 | 10 | 20 | 20 | 120 | 15 | 25 | 10.5 | 0.5 | |
| 1 | 60 | 10 | 20 | 20 | 140 | 18 | 30 | 12 | 0.6 | |
| 1.25 | 60 | 10 | 20 | 20 | 140 | 18 | 30 | 13 | 0.6 | |
Material
The tool bit of the internal threading tools uses PCBN or PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide.
We are a China-based manufacturer of PCD/PCBN internal threading tool. We provide a comprehensive line of products, including PCBN cutting tool, glass cutting tool, CVD diamond tool, diamond die blank, and more.
