Carding Machine for Fiber Disentangling (Double Cylinder Double Doffer)

Carding Machine for Fiber Disentangling                     (Double Cylinder Double Doffer)
Carding Machine for Fiber Disentangling                     (Double Cylinder Double Doffer)
Carding Machine for Fiber Disentangling                     (Double Cylinder Double Doffer)
Carding Machine for Fiber Disentangling                     (Double Cylinder Double Doffer)
Carding Machine for Fiber Disentangling                     (Double Cylinder Double Doffer)
Request a Quote

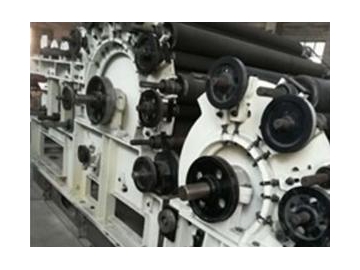

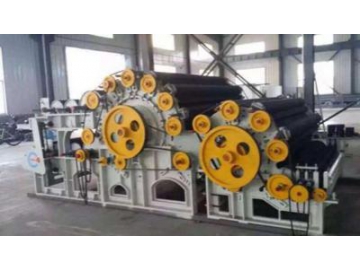

Double cylinder double doffer carding machine is used to disentangles and intermixes the preprocessed spinning to produce fiber web. There are different types of carding machine with different structures depending on the type of fiber and process requirements. This double cylinder double doffer carding machine is equipped with 2 cylinders with diameter of 1230mm and 850mm respectively and 2 doffers with diameter of 635mm. Thanks to the design of double cylinder, better carding effect can be achieved. Besides, this double cylinder double doffer carding machine can not only card new fiber, but also can card recycled waste fiber effectively. The carded fiber by this double cylinder double doffer carding machine is more uniform and continuous.

Basic parameters of this double cylinder double doffer carding machine are listed below, contact us for more details:
Product Single cylinder double doffer carding machine
Working Width(mm) 1520mm,2020mm,2220mm
Output Speed: 20-55m/min
Doffer Diameter: 535mm*1
Cylinder Diameter: 1020mm*1
Carding type: Cutting die or roller

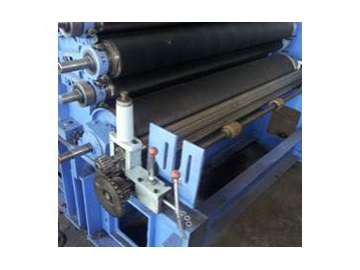

Fiber Feeding Controlled by the sensor from carding machine
Power 10.5kw-15.4kw
Weight (1520mm) 2000kgs
  • Main cylinder and breast cylinder: better carding effect, more smooth and even carded fiber.

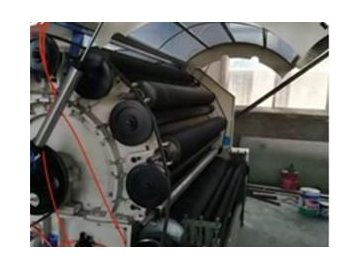

  • Cylinder cover: protect the cylinder from damage in operation and prevent dust.
  • Random roller is used for clutter processing of carded fiber to increase the strength of fiber web.
