Alloy Steel Clevis Clutch
Request a Quote
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
SLR638-G80 CLEVIS CLUTCH
Ultimate load is 4 times the Working Load Limit.

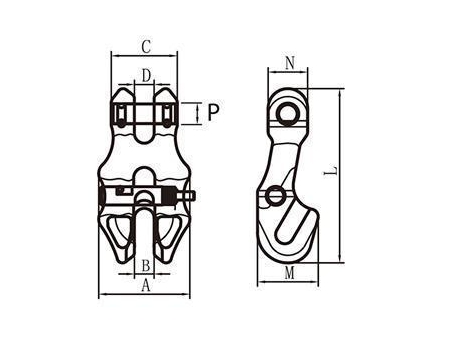

| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±0.5 | B±0.5 | C±0.5 | D±0.5 | M±0.3 | N±0.5 | P±0.1 | L±1 |
| 8-SLR638-8-8 | 0.41 | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 33 | 23 | 9.2 | 92 |
| 8-SLR638-10-8 | 0.75 | 3.15 | 12.6 | 60 | 12.5 | 43 | 12.5 | 40 | 26 | 13.3 | 115 |
| 8-SLR638-13-8 | 1.67 | 5.3 | 21.2 | 79 | 15 | 55 | 12 | 54 | 34 | 163 | 149 |
