Alloy Steel Clevis Ring
Request a Quote
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

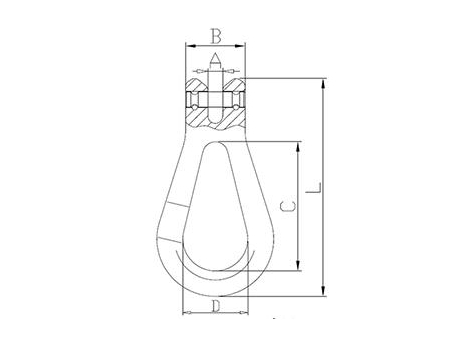

| Item code | Weight (kg) | Working load limit(t) | Breaking load(t) | A±0.5（mm) | B±1.5（mm) | C±2（mm) | D±1（mm) | L±3（mm) |
| 8-SLR241-10 | 0.75 | 3.15 | 12.6 | 12 | 45 | 99 | 49 | 167 |
| 8-SLR241-13 | 1.6 | 5.3 | 21.2 | 15 | 58 | 130 | 64 | 215.5 |
| 8-SLR241-18 | 3.5 | 10 | 40 | 23 | 73 | 185 | 98 | 317 |
It will be provided only for specific demand.
If you need the detailed information, please contact us.
