TJ650 Copper Bus Bar & Profile Line
Continuous Extrusion Machine for Copper Busbar

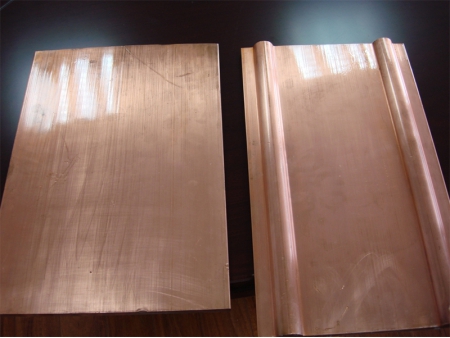

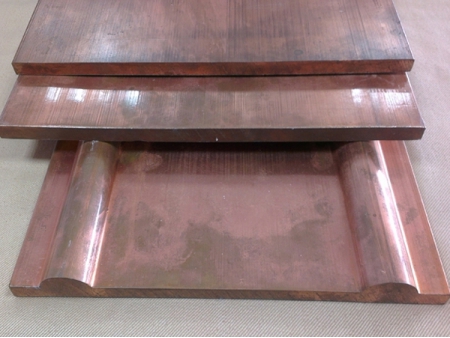

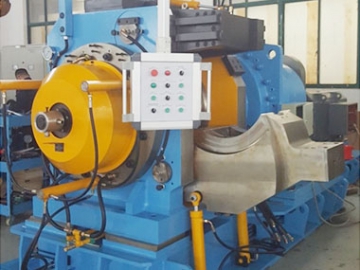

The TJ650 continuous rotary extrusion line supports using oxygen-free copper rod as the feedstock to produce copper busbar and other types of copper strip with maximum width of 350mm. The feedstock can be conveniently prepared by using continuous casting machines. This range of continuous rotary extrusion machinery is designed with an effective cooling system which not only cools the extruded products but also the tools and components of the copper extruding machine. Thus, the copper busbar production line and its key components have long lifespan and low maintenance.
The continuous rotary extrusion line is applicable for forming copper products with maximum width of 350mm and maximum width-to-thickness ratio of 30. It is an optimum solution to make oxygen-free copper strips with a wide range of specifications.
| Model | TJ650 |
| Nominal Diameter of Extrusion Wheel（mm） | Φ650 |
| Power of Main Motor（kW） | 600 |
| Feed Stock Diameter（mm） | Φ30 |
| End Product Max. Width（mm） | 450 |
| End Product Sectional Area Range（mm²） | 400-10000 |
| Average Output（kg/h） | 3000 |
