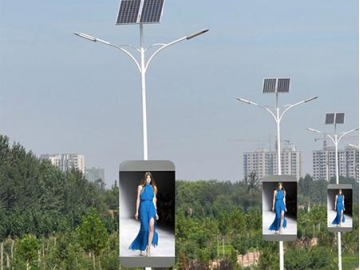

Pole support LED billboard is an LED display mounted on the lamp pole. So a pole support LED billboard can be installed in the place with the pole. Although the screen of pole support LED billboard isn’t large, it tends to have multiple screens in one place. Many LED display could repeatedly play a message to achieve the purpose of advertising. The pole support LED billboard can be remotely controlled via 3G/4G/WIFI Wireless, and program can be update anytime and anywhere.

Features:
  • Pole support LED billboard specially designed for street lamps. The shape of the cabinet is unique, novel and beautiful, and can be well integrated with the pole. The cabinet is designed with reinforced iron hoops for added safety and security.
  • Ultra-light and ultra-thin cabinet design, easy to install, easy to maintain.
  • The protection rate reaches IP65, the brightness is more than 6000nits, and the pole support LED billboard is suitable for the permanent outdoor installation.
  • Pole support LED billboard can automatically adjust the screen brightness according to the ambient light, neither too bright to produce light pollution, nor because the brightness is too low to affect the advertising effect.
  • Our pole support LED billboard can achieve centralized management, and can simultaneously control all the display through the terminal.
Parameters:
Model P3 P4 P5 P6 P8 P10
Pixel Pitch 3mm 4mm 5mm 6mm 8mm 10mm
Pixel Configuration SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B
LED Type 1921 1921 2727 3535 3535 3535
Pixel Per SQM 111,111 dots 62,500 dots 40,000 dots 27,777 dots 15,625 dots 10,000 dots
Module Size 192x192mm 256x128mm 160x160mm 192x192mm 256x128mm 320x160mm
Module Resolution 64x64 64x32 32x32 32x32 32x16 32x16
Display Size 768x1344mm 768x1408mm 800x1440mm 768x1344mm 768x1408mm 640x1440mm
DisplayResolution 256x448 dots 192x352 dots 160x288 dots 128x224 dots 96x176 dots 64x144 dots
Brightness ≥6000 cd/m2 ≥7000 cd/m2 ≥6000 cd/m2 ≥6000 cd/m2 ≥6000 cd/m2 ≥7000 cd/m2
Viewing Angle 120 / 120 120 / 120 120 / 120 120 / 120 120 / 120 120 / 120
Driving Method 1/16 1/8 1/8 1/8 1/4 1/2
Gray Scale 65536 65536 65536 65536 65536 65536
Refresh Rate 1920 1920 1920 1920 1920 1920
Input Voltage (AC) 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v
Frame Frequency 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz
LED Blind Spot Rate 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000
Lifetime 100,000 h 100,000 h 100,000 h 100,000 h 100,000 h 100,000 h
Operating Temperature -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum
Protection Rate IP65 IP65 IP65 IP65 IP65 IP65
Warranty 3 years 3 years 3 years 3 years 3 years 3 years
