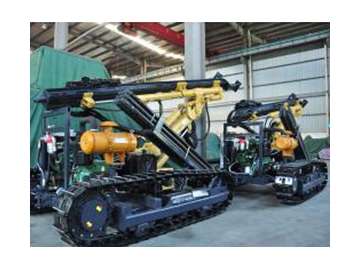

KG915(D) Low Pressure Crawler Drilling Rig
Request a Quote
Product Features
The KG915(D) series of low pressure crawler drilling rigs features a luffing tilt mechanism and a double-pivot swing angle for drilling horizontal holes drill in water conservancy projects, open air mining, and building excavation. With a frame that can tilt 45°, the operator can clearly observe the unloading rod’s operation. Our drill rig comes with an elevator so the drill is easy to access and maneuver. Make each job less labor intensive with this open-air DTH drilling car.
Model | KG915D | KG915D | |
Rock Hardness | F=6-20 | ||
Diameter of Hole (mm) | Φ80-105mm | ||
Drilling Depth (m) | 25m | ||
Working Air Pressure | 0.7-1.4MPa | ||
Air Consumption | 9-13 m3/min | ||
Rotation Speed | 0-120 r/min | ||
Rotation Torque | 980 N.m | ||
Lift Power | 17KN | ||
Propulsion Type | Hydro-Cylinder-Chain | ||
Propulsion Length | 2000mm | ||
Walking Speed | 0-2.0 km/h | ||
Grade Ability | 30° | ||
Ground Clearance | 290mm | ||
Weight | 3900kg | ||
Dimension | 4600*2120*1800mm | ||
Pitch Angle of Carriage | Down 145° Up55° Total 185° | ||
Swing Angle of Carriage | Left 100° Right 45° Total 145° | ||
Pitch Angle of Drill Arm | Down 50° Up 25° Total 75° | ||
Carriage Compensation Length | 900mm | ||
Diesel Engine /Electric Motor | YC2108 (33KW/ 2200r/min) | 22KW (1460r/min) | |
Drill Rod | Φ60*2000mm |

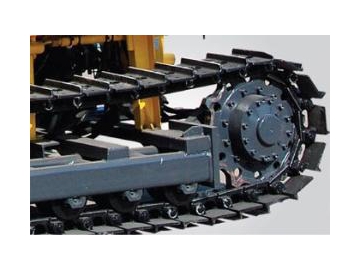

- Crawler

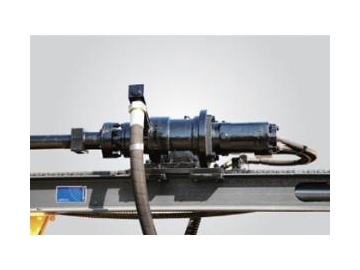

- Gyrator
Drill Bit Dia. | 90mm |
Drill Rod Dia. *L | Φ60x2000mm |
Drill Hammer | 90 |
Below are the model diesel mobile screw / piston air compressors we recommend

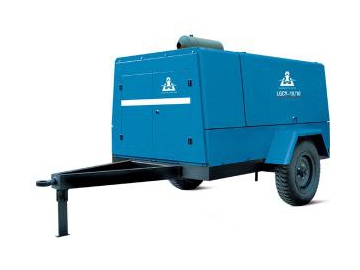

- Diesel Mobile Screw Air Compressor
- Diesel Mobile Piston Air Compressor
Model No. | LGCY-10/10 | LGCY-12/10 |
Capacity | 10m3/min (353cfm) | 12m3/min (424cfm) |
Working pressure | 10Bar/145Psi | 10Bar/145Psi |
The head model no. | SKY148MM | SKY148LM |
Air compressor oil capacity | 25L | 35L |
Compression stage | Single | Single |
Noise level db (a) | 80±3 | 80±3 |
Outlet connection size *Qty | G1 ½×1&G¾×1 | G1 ½×1&G¾×1 |
Engine | Cummins | Yuchai |
Engine Model No | Cummins 4BTA3.9-C125 | YC6B150Z-K20 |
Cylinder bore stroke number of cylinders | 102*120*4 | 108*125*6 |
Delivery capacity | 3.9 L | 6.871 L |
Rated RPM | 1800r/min | 1800r/min |
Unloading RPM | 1400r/min | 1400r/min |
Rated power | 93KW/125HP | 110KW/150HP |
Diesel engine oil capacity | 9L | 15L |
Fuel tank capacity | 130L | 130L |
Electrical system voltage | 24V | 24V |
Package | ||
Wheel size *Qty | 6.5-16×2 | 6.5-16×2 |
Weight | 1900 KGS | 2380 KGS |
Dimension (L*W*H mm) | 3900*1920*1900 | 3970*1940*2350 |

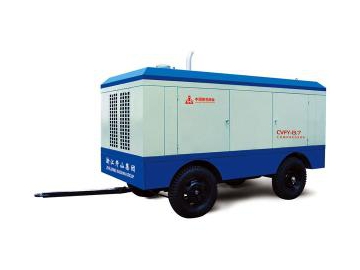

Model No | CVFY-13/7 |
Exhaust Volume (m3/min) | 13 |
Exhaust Pressure (MPa) | 0.7 |
Cylinder (Dia*Qty) | 260*2/160*2 |
Diesel Engine/Motor | YUCHAI YC6108ZG,108KW; CUMMINS 6BT5.9-C118 |
Volume of Gas Storage Tank (L) | 350 |
Dimension (L*W*H) CM | 350*170*210 |
Weight (kg) | 3100 |
