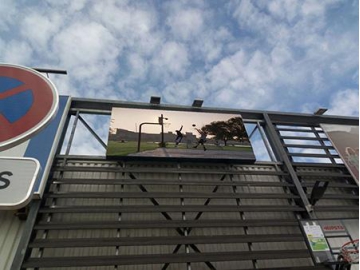

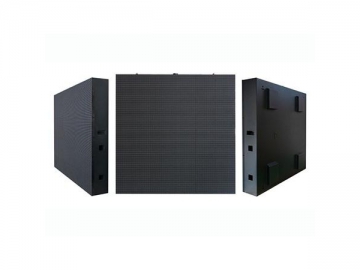

A conventional LED screen is installed with a steel structure to maintain the LED screen. A channel is left behind the LED screen to facilitate the maintenance of the LED screen. However, for some projects, it is not convenient to maintain the LED screen from the back due to the installation conditions. In this case, we recommend that customers use front maintenance LED display. The front maintenance LED display cabinet can be opened from the front without the need for a maintenance channel behind the screen, so maintenance is more convenient and installation is not restricted. Haian can provide front maintenance LED display with pixel pitch from 3mm to 20mm, which customers can choose according to their actual needs. Our front maintenance LED display is manufactured using the industry's most advanced technology and is extremely waterproof and dustproof.

Features:
  • The front flip LED signage has a brightness of more than 6000 nits, so it is clearly visible under the sun. And the brightness can be automatically adjusted according to the ambient light, which won’t cause light pollution, and won’t affect the advertising effect.
  • Applying high-quality LED lamp beads and 1.6mm thick PCB board, the module lifetime is more durable.
  • High refresh rate, no water ripples on the display. The picture is clear and supports 4K playback.
  • The protection rate is IP65, so the LED display can adapt to a variety of severe weather and is suitable for long-term outdoor use.
  • The stripe design of the mask has been carefully calculated, which greatly reduces the trouble caused by the reflection of ambient light on the LED light.
  • If the distance between the control room and the LED display is far away, the program can be updated by wireless remote control to control the LED display anytime and anywhere.
Parameters:
Model P3 SMD P4 SMD P5 SMD P6 SMD P8 SMD P10 SMD P10 DIP P12 DIP P16 DIP P20 DIP
Pixel Pitch 3mm 4mm 5mm 6mm 8mm 10mm 10mm 12mm 16mm 20mm
Pixel Configuration SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B DIP 1R1G1B DIP 1R1G1B DIP 1R1G1B DIP 1R1G1B
LED Type 1921 1921 2727 3535 3535 3535 346 346 346 346
Pixel Per SQM 111,111 dots 62,500 dots 40,000 dots 27,777 dots 15,625 dots 10,000 dots 10,000 dots 6,944 dots 3,906 dots 2,500 dots
Module Size 192x192mm 256x128mm 160x160mm 192x192mm 256x128mm 320x160mm 160x160mm 192x192mm 256x256mm 320x160mm
Module Resolution 64x64 64x32 32x32 32x32 32x16 32x16 16x16 16x16 16x16 16x8
Brightness ≥6000 cd/m2 ≥7000 cd/m2 ≥6000 cd/m2 ≥6500 cd/m2 ≥6500 cd/m2 ≥7000 cd/m2 ≥8000 cd/m2 ≥6000 cd/m2 ≥9000 cd/m2 ≥6000 cd/m2
Viewing Angle 120 / 120° 120 / 120° 120 / 120° 120 / 120° 120 / 120° 120 / 120° 120 / 65° 120 / 65° 120 / 65° 120 / 65
Driving Method 1/16 1/8 1/8 1/8 1/4 1/2 1/4 1/4 Static Static
Gray Scale 65536 65536 65536 65536 65536 65536 65536 65536 65536 65536
Refresh Rate 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz
Input Voltage (AC) 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v 100v - 240v
Frame Frequency 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz
LED Blind Spot Rate 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000 1/10,000
Lifetime 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h
Operating Temperature -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum
Protection Rate IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Warranty 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years
