Request a Quote

The ball screw support unit connects the screw and the motor using coupling. It consists of a fixed side and support side, and is classified into LBK and LBF; LEK and LEF, LEF and LFF types. The LBK type and LEK type support units are generally mounted from top. When installing on the platform, it connects the servo motor and the ball screw. The difference between LBK and LEK is the center height. The LFK is usually installed on the side.

  • Type LBK Fixed Side

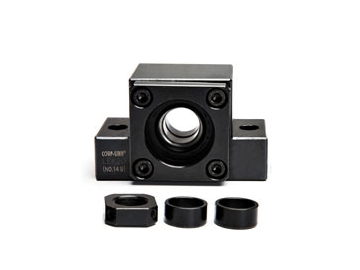

    1. Type LEK Fixed Side

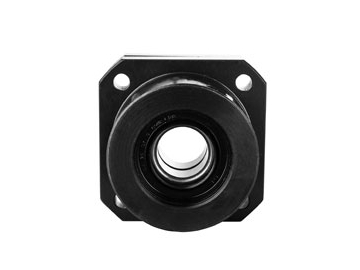

    1. Type LFK Fixed Side

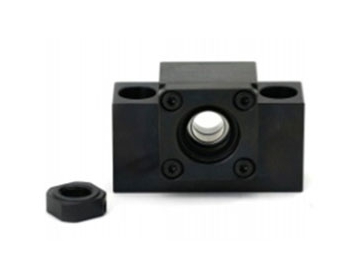

    1. Type LWBK Fixed Side

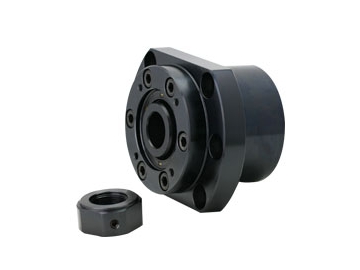

    1. Type LWBK Heavy Duty

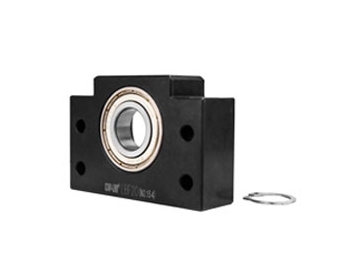

    1. Type LBF Supported Side

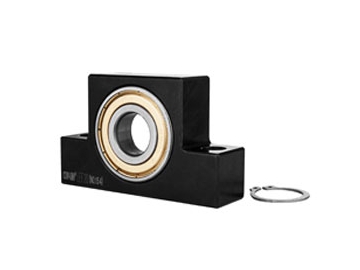

    1. Type LEF Supported Side

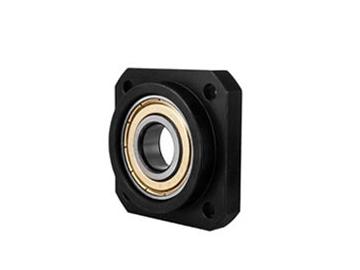

    1. Type LFF Supported Side

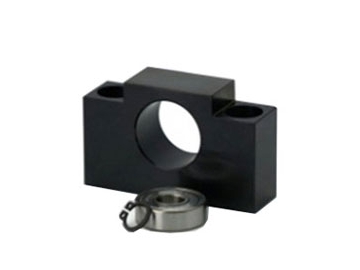

    1. Type LWBF Supported Side

GZLINK produces various precision couplings including disc coupling, slit couplings, jaw couplings and flexible couplings. We also provide ball screw support units and motor brackets. Our products have passed the RoHS certificate and are sold to America, Japan and Singapore. We have good co-relationships with thousands of companies at home and abroad. You can find the products you need in our product list. If you do not find the product you need, please contact us and we will customize your products based on your needs.
