Static Mixer

Request a Quote

About Us: http://fillinglinecn.com/2-static-mixer.html

Description

The static mixer is mainly applied for mixing colors and adding additives, which simultaneously and proportionally extrudes and mixes color pastes, base material and additives. This mixer is suitable for the filling of 200L large barrels. The changeover of color is convenient, with less loss. It can be used together with automatic double head piston filler or tube filler and sealer to match with nitrogen energy storage. The static mixer is replacing the traditional sealant making equipment, capable of simultaneous adding and extruding of over two materials with even mixing. Besides, it has wide applications.

Technical parameters

Speed	2T/hour
Additive proportion	The minimum ratio of additive to filling volume is 1%.
Color paste proportion	Min. Ratio of color paste to filling volume is 1%.
Overall power	31KW
Gas pressure	0.7MPa
Gas consumption	50L/min
Working pressure of hydraulic system	18Mpa
Hydraulic cooling method	Water cooling
Machine size (L x W x H)	1450x1200x1820mm
Net weight	2T

Note: We can match the voltage and frequency of the equipment depending on different customer’s location.

Features

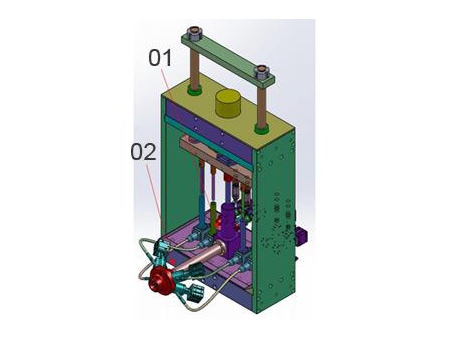

Measuring system

01: Metering mechanism
02: Mixing system

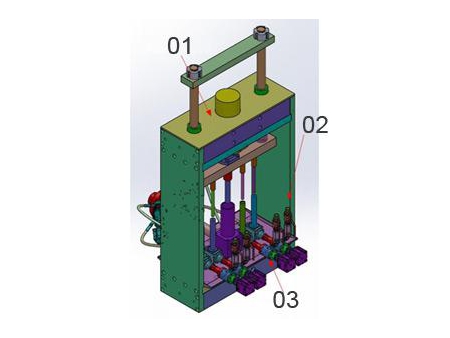

01: Hydraulic squeezing mechanism
02: Additives inlet
03: Feeding actuator

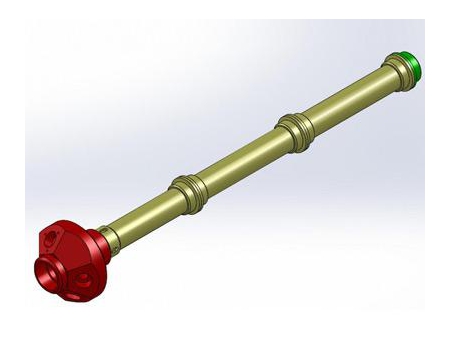

Mixing system

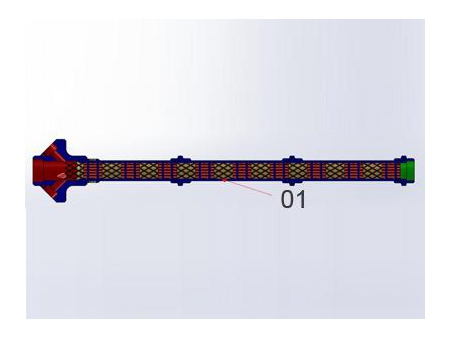

- Profile map of mixing system
Pressure detection
Fault alarming and displaying
