DC24V Cool White IP68 Waterproof LED Strip Lights, 2835 SMD LED Manufacturer

DC24V Cool White IP68 Waterproof LED Strip Lights, 2835 SMD LED

Request a Quote

About Us: http://ledstripsolution.us/3-16-waterproof-led-strip-lights-2835-smd-led.html

Key Features

Ambient Temperature: -20℃ to 45℃
Voltage: DC24V
Length/Reel(M/ft): 5m/16.4ft
The high-quality silicone tube features an excellent waterproof performance. Perfect for underwater lighting projects
SMD 2835 LED chips independently produced by LEDMY guarantee the high color consistency among different batch products. 5000-6000K cool white lighting effects
Heatsinks mounted on the reverse side of the LED strip light improve the cooling performance and extend the service life.
Glittering and translucent appearance. High luminous efficacy up to 100lm/W and high color rendering index of CRI 90
3cm wide waterproof vacancies are designed at two ends of the strip light to avoid short circuiting risks caused by water or electric leakage in the events the caps come unglued.

*Please contact our sales for the latest details and certifications

Specification

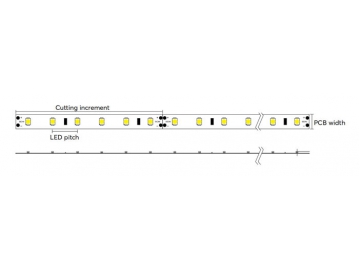

Model	Led Qty	Power	Lumens per feet(6000K)	Cutting increment	LED pitch	PCB width
FH05W-P8-G1 28LZ9x 24V60S W08L05	60LEDs/M	4.8W/M 1.46W/ft	350lm/M 107lm/ft	100mm 3.94inch	16.7mm 0.66inch	10.5mm 0.39inch
FH08W-P8-G1 28LZ9x 24V96S W08L05	96LEDs/M	7.6W/M 2.32W/ft	580lm/M 177lm/ft	62.5mm 2.46inch	10.4mm 0.41inch	10.5mm 0.39inch
FH10W-P8-G1 28LZ9x 24V120S W08L05	120LEDs/M	9.6W/M 2.93W/ft	730lm/M 223lm/ft	50mm 1.97inch	8.3mm 0.33inch	10.5mm 0.39inch
FH14W-P8-G1 28LZ9x 24V180S W10L05	180LEDs/M	14.4W/M 4.39W/ft	1140lm/M 348lm/ft	33.3mm 1.31inch	5.6mm 0.22inch	12.5mm 0.47inch
FH09W-P8-G1 28HZ9x 24V30S W08L05	30LEDs/M	8.5W/M 2.59W/ft	580lm/M 177lm/ft	166.7mm 6.56inch	33.3mm 1.31inch	10.5mm 0.39inch
FH10W-P8-G1 28HZ9x 24V60S W08L05	60LEDs/M	10W/M 3.05W/ft	820lm/M 250lm/ft	100mm 3.94inch	16.7mm 0.66inch	10.5mm 0.39inch
FH14W-P8-G1 28HZ9x 24V60S W10L05	60LEDs/M	14.4W/M 4.39W/ft	1090lm/M 332lm/ft	100mm 3.94inch	16.7mm 0.66inch	12.5mm 0.47inch
FH19W-P8-G1 28HZ9x 24V120S W10L05	120LEDs/M	19.2W/M 5.85W/ft	1600lm/M 488lm/ft	50mm 1.97inch	8.3mm 0.33inch	12.5mm 0.47inch

Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.
