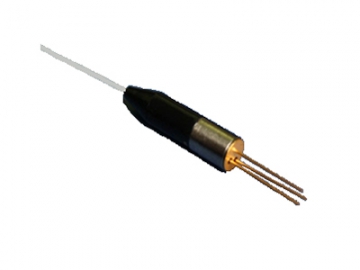

300nm-1000nm Detector Pigtailed Components
Request a Quote
Features
- High response,flat structure of SI PIN detector
- Low capacitance and low dark current
- Operating wavelength of 300-1000nm
- Single-mode fiber coaxial package
Applications
Date receiver/ Power detector
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+100 | ℃ |
| Operating Temperature | Top | -40~+85 | ℃ |
| Max Input Power | Pmax | +3 | dBm |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 25 | V |
| Soldering Temp | - | 260 | ℃ |
| Soldering Time | - | 10 | S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 300 | - | 1000 | nm | - |
| Power Range | P | -70 | - | +3 | dBm | V,=5V |
| Active Diameter | Ad | - | 100 | - | um | - |
| Dark Current | Id | - | 0.5 | 1 | nA | - |
| Responsivity | R | - | 0.40 | 0.45 | A/W | λ=850 nm |
| Frequency Bandwidth | Bw | - | 1000 | - | MHz | - |
| Capacitance | Ct | - | 0.8 | 1 | Pf | - |
| Response Time | Tr | - | - | 1 | ns | - |
Pin Definition
Drawing
Order Information
SIPD-XXXXX
| SI | PD | -X | X | X | X | X |
| Mode | Product Type | Bandwidth | Connector | Pigtail Length | Fiber Type | Responsivity |
| - | - | 01：1Gb/s | 1：FC/APC 2：FC/PC 3：SC/APC 4：SC/PC 5：LC/PC 6：LC/APC W：Without | 05：0.5M 10：1.0M 15：1.5M | M52：50/125/250um M59：50/125/900um M62：62.5/125/250um M69：62.5/125/250um | R40：0.40~0.45A/W |
