Request a Quote

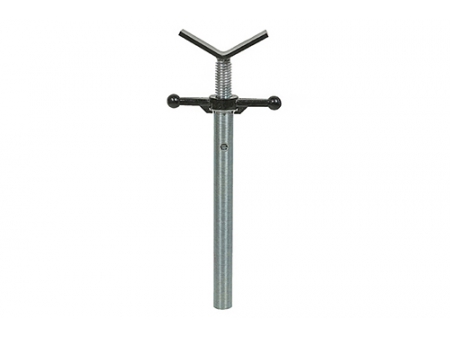

  • Heavy type V head: Pipe stand with durable V head, suitable for pipes ranging from 1/8-12 inches (3.2-304.8cm)
  • Corrosion and dust resistant steel structure, allowing the weight of 2500lb (1134kg).

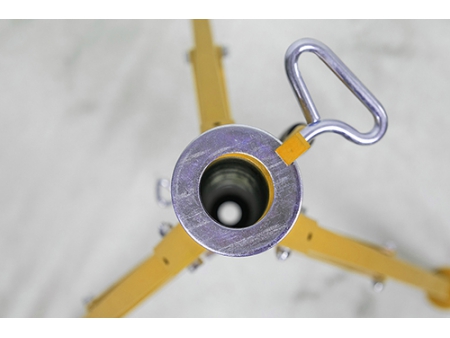

  • Adjustable structure: Three stands with different height adjustment range from 50.5 to 132cm to support pipe for a variety of uses. Locking ring allows for quick vertical height adjustments.

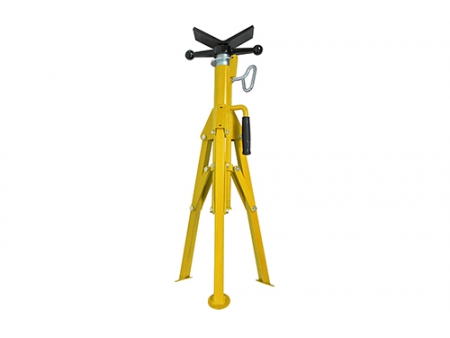

  • Folding and portable design: Foldable stand well saves the space, and its slip resistant rubber handle is easy to carry.

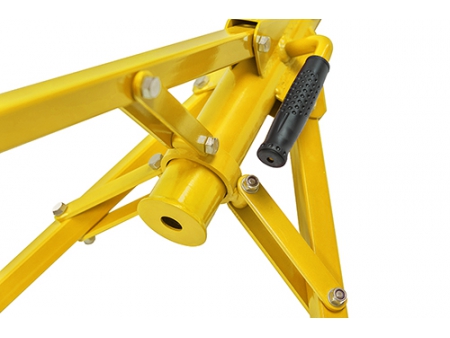

  • Strong stability: The tripod design allows excellent stability. And tension plate supplies good horizontal supporting. Besides, it also has widened round foot pads.

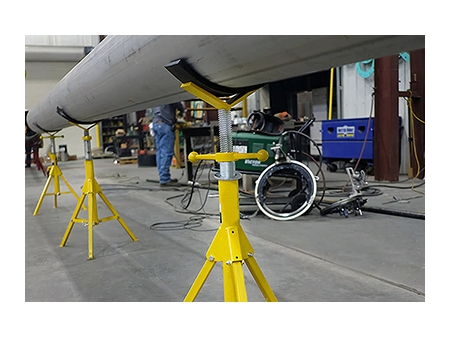

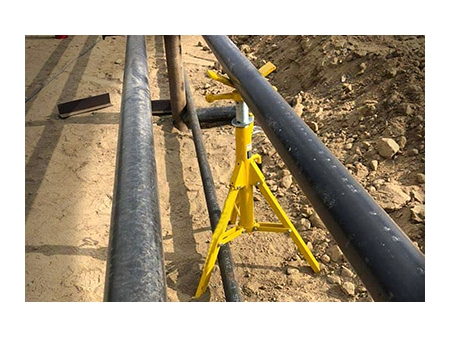

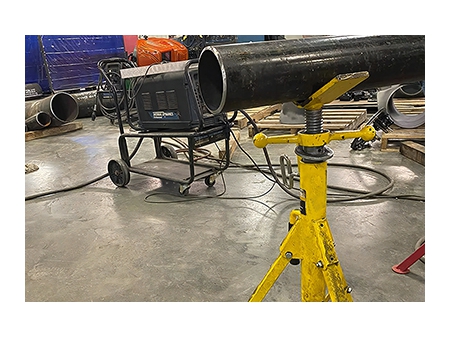

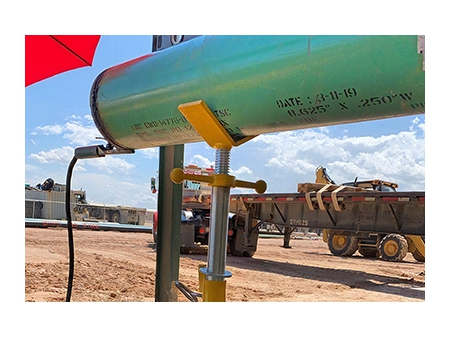

Application

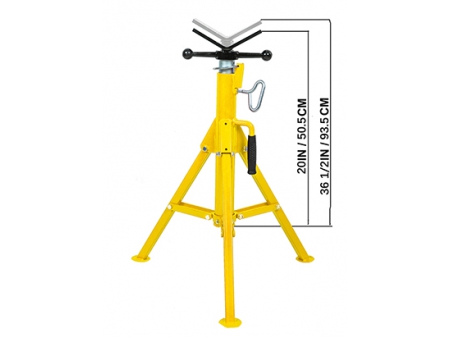

    Model No.: 1107S
  • Description: V head pipe stand
  • Height adjustment(in.): 20-36 ½
  • Low - High(mm): 50.5-93.5
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 2500
  • Max weight capacity(kg): 1134
  • Weight(kg): 11.4

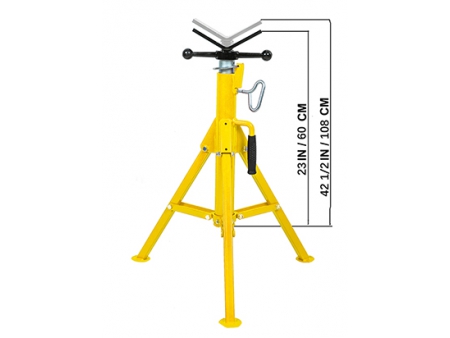

    Model No.: 1107M
  • Description: V head pipe stand
  • Height adjustment(in.): 23-42 ½
  • Low - High(mm): 60-108
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 2500
  • Max weight capacity(kg): 1134
  • Weight(kg): 12.6
    Model No.: 1107L
  • Description: V head pipe stand
  • Height adjustment(in.): 28-52
  • Low - High(mm): 71-132
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 2500
  • Max weight capacity(kg): 1134
  • Weight(kg): 14.4
Catalog No. 730010 730020 730030
Model No.
1107S
1107M
1107L
Description V head pipe stand V head pipe stand V head pipe stand
Height adjustment Low - High in. 20-36 ½ 23-42 ½ 28-52
mm 50.5-93.5 60-108 71-132
Max pipe capacity in. 12 12 12
mm 300 300 300
Max weight capacity Lb. 2500 2500 2500
kg 1134 1134 1134
Weight kg 11.4 12.6 14.4
Features
    1. Three heights are available for a variety of uses.

    1. Imported screws are of alloy materials.

    1. Reliable and firm connection with bolts, and stable three-legged structure

    1. Fastener allows a maximum weight of 2500lb.

    1. Foldable design allows easy stocking and occupies small space.
