Request a Quote

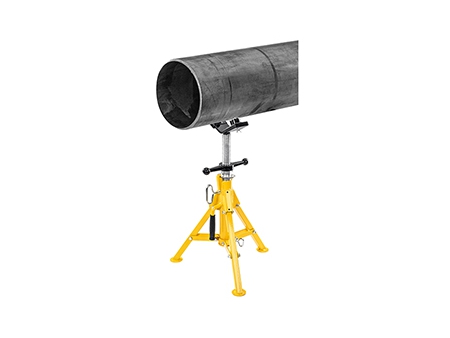

  • Durable V head roller head pipe stand is suitable for pipes ranging from 1/8-12 inches (3.2-304.8cm).
  • Corrosion and dust resistant steel structure, allowing the weight of 1000lb (454kg).
  • Adjustable structure: Three stands with different height adjustment range from 50.5 to 132cm to support pipe for a variety of uses.

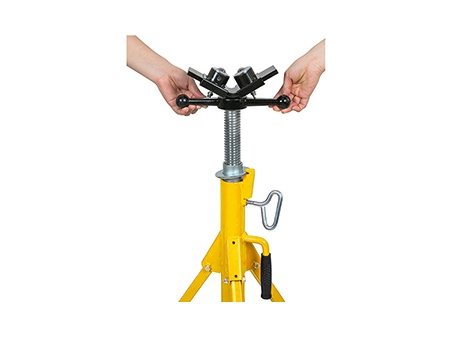

    Locking ring allows for quick vertical height adjustments.
  • Folding and portable design: Foldable stand well saves the space, and its slip resistant rubber handle is easy to carry.
  • Strong stability: The tripod design allows excellent stability.And tension plate supplies good horizontal supporting. Besides, it also has widened round foot pads.

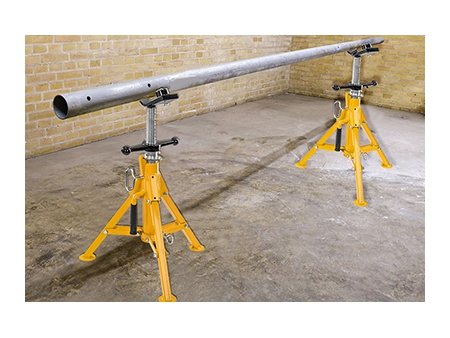

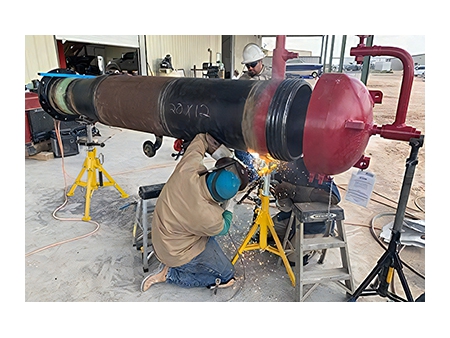

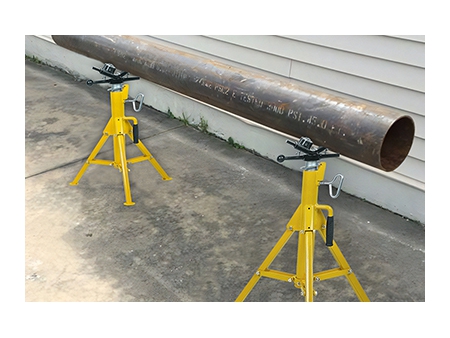

  • Movable design: Roller structure allows easy moving forward and backward, well saving the time and labor cost. It is widely applied for welding heavy pipes, and round pipes, as well as the pipe supporting during wiring, hole cutting and channeling.

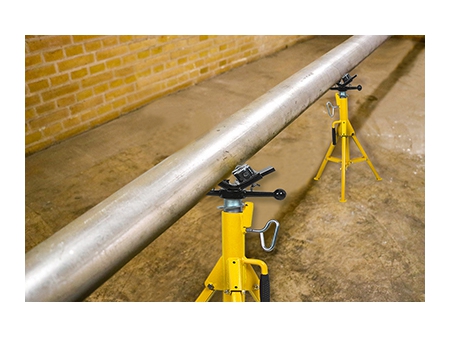

Application

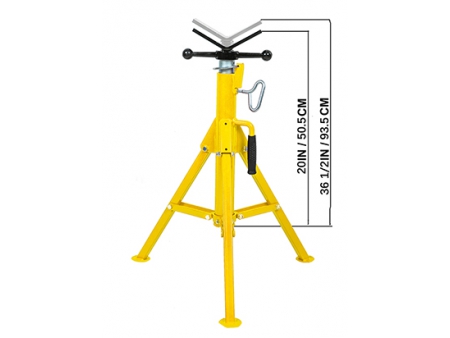

    Model No.: 1107A-S

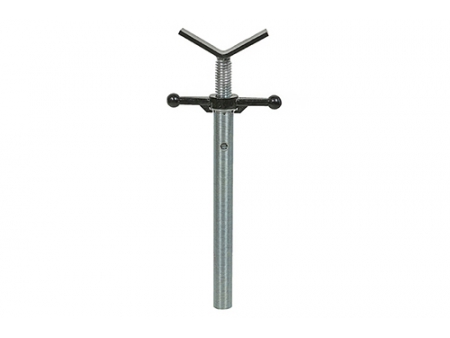

  • Description: V head pipe stand
  • Height adjustment(in.): 20-36 ½
  • Low - High(mm): 50.5-93.5
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 12.9

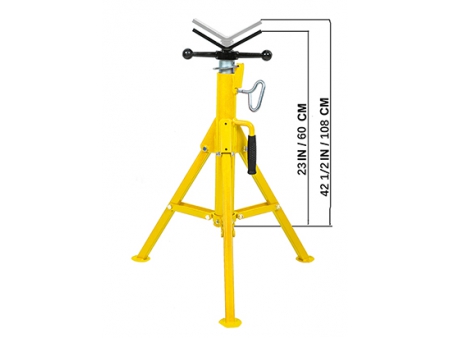

    Model No.: 1107A-M
  • Description: V head pipe stand
  • Height adjustment(in.): 23-42 ½
  • Low - High(mm): 60-108
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 14.1
    Model No.: 1107A-L
  • Description: V head pipe stand
  • Height adjustment(in.): 28-52
  • Low - High(mm): 71-132
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 15.9
    Model No.: 1107B-S
  • Description: V head pipe stand
  • Height adjustment(in.): 20-36 ½
  • Low - High(mm): 50.5-93.5
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 14.2
    Model No.: 1107B-M
  • Description: V head pipe stand
  • Height adjustment(in.): 23-42 ½
  • Low - High(mm): 60-108
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 15.4
    Model No.: 1107B-L
  • Description: V head pipe stand
  • Height adjustment(in.): 28-52
  • Low - High(mm): 71-132
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 17.2
    Model No.: 1107R-S
  • Description: V head pipe stand
  • Height adjustment(in.): 20-36 ½
  • Low - High(mm): 50.5-93.5
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 14.9
    Model No.: 1107R-M
  • Description: V head pipe stand
  • Height adjustment(in.): 23-42 ½
  • Low - High(mm): 60-108
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 16.1
    Model No.: 1107R-L
  • Description: V head pipe stand
  • Height adjustment(in.): 28-52
  • Low - High(mm): 71-132
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 1000
  • Max weight capacity(kg): 454
  • Weight(kg): 17.9
Catalog No. 730040 730050 730060 730070 730080 730090 730100 730110 730120
Model No.
1107A-S
1107A-M
1107A-L
1107B-S
1107B-M
1107B-L
1107R-S
1107R-M
1107R-L
Description V head pipe stand
Height adjustment Low - High in. 20-36 ½ 23-42 ½ 28-52 20-36 ½ 23-42 ½ 28-52 20-36 ½ 23-42 ½ 28-52
mm 50.5-93.5 60-108 71-132 50.5-93.5 60-108 71-132 50.5-93.5 60-108 71-132
Max pipe capacity in. 12 12 12 12 12 12 12 12 12
mm 300 300 300 300 300 300 300 300 300
Max weight capacity lb. 1000 1000 1000 1000 1000 1000 1000 1000 1000
kg 454 454 454 454 454 454 454 454 454
Weight kg 12.9 14.1 15.9 14.2 15.4 17.2 14.9 16.1 17.9
Features
    1. Three models with different heights and roller heads are available for a variety of uses.

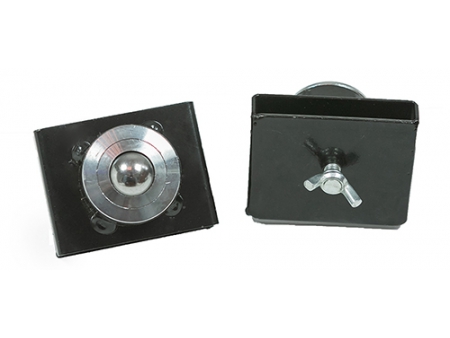

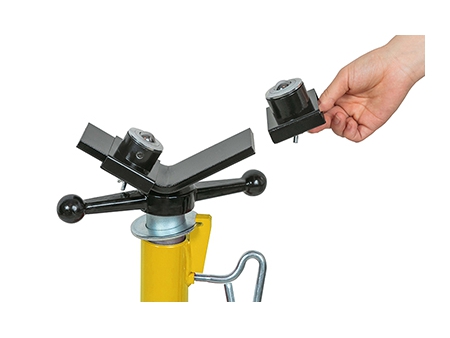

      Roller heads are easy to install and dismantle.

    1. Imported screws are of alloy materials.

    1. Reliable and firm connection with bolts, and stable three-legged structure.

    1. Fastener allows a maximum weight of 2500lb.

    1. Foldable design allows easy stocking and occupies small space.
