Description

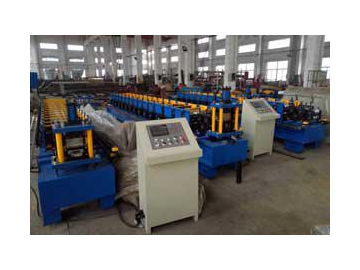

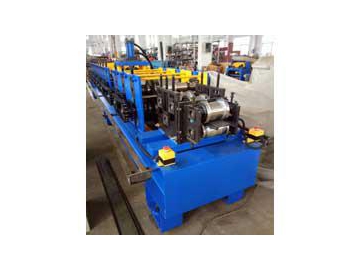

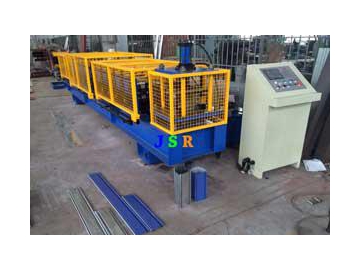

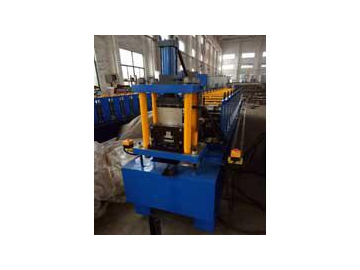

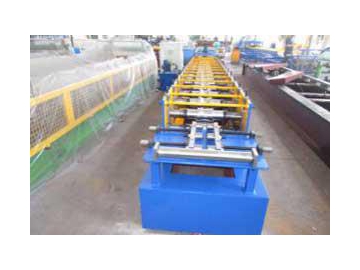

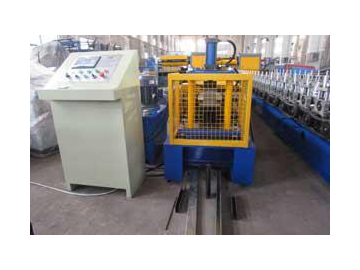

We provide roll forming machine that produce roll up door slats in variety of materials including No.45 steel and chrome plated. The slat rollforming line is capable of forming 0.4-0.6mm thick steel coils into slats at a highest speed of 20m/min. High precision rollers guarantee the rolling door slats’ precision.

Specifications
Machine Specifications
Weight About 5000kgs
Size About 6m × 1.2m × 1.5m (length × width × height)
Suitable Raw Material
Material Pre-painted galvanized steel coils
Thickness 0.4-0.6mm
Yield strength 235MPa
Main Technical Parameters
Diameter of forming roller shafts 55mm
Roll forming speed 15-20m/min
Forming roller material No.45 steel, chrome plated
Cutter material CR12 mold steel, with quench heat treatment
Control system PLC and converter
Electric power requirement Main motor power: 4kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer's requirement

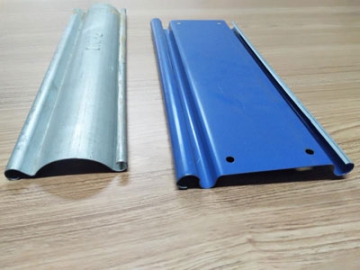

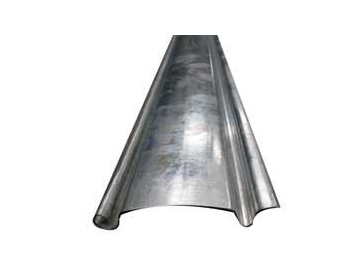

In addition to the standard profile of the slat, we can tailor roll forming line for wide range shapes rolling door slat such as flat slats, curved slats, and clamshell slats, etc.
