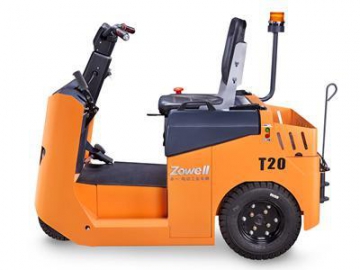

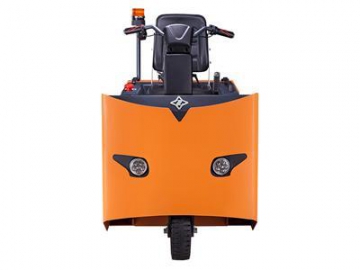

2,000kg Electric Tugger

2,000kg Electric Tugger
2,000kg Electric Tugger
2,000kg Electric Tugger
2,000kg Electric Tugger
2,000kg Electric Tugger
2,000kg Electric Tugger
2,000kg Electric Tugger
Request a Quote

Basic information
Rated load: 2000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001

Detail features

1. Motorbike handle
The electric tugger is equipped with a motorbike style handle which is intuitive and familiar to control. The operation is easy and turning is highly flexible.

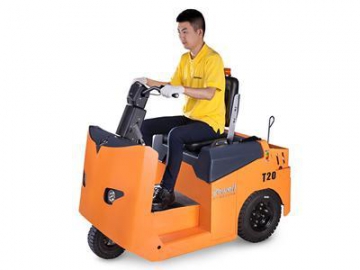

2. Comfortable seat
The wide and comfortable seat is designed to relieve the fatigue of the operators.

Structural Drawings
Parameters
Features
Product type XT20
Driving mode Electronic
Operating mode Sitting type
Rated load (kg) 2000
Rated traction force (N) 400
Wheel track (mm) 1038
Weight
Tugger weight (with standard battery) (kg) 800
Wheel
Tyre Rubber tyre
Front wheel dimension 3.50-5
Back wheel dimension 4.00-8
Wheel number (x=driving wheel, front wheel/back wheel) 1/2x
Front gauge (mm) 0
Track rear (mm) 680
Basic dimension
Total height (mm) 1330
Total length (mm) 1645
Total width (mm) 800
Ground clearance (mm) 82.5
Turning radius (mm) 1520
Performance
Moving speed full load/no load (km/h) 8/9
Brake mode Hydraulic brake
Motor
Driving motor power (kW) 2.2
Storage battery voltage/capacity (V/Ah) 24/180
Other
Controller dB (A) AC CURTIS
