Basic information
Rated load: 4000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001

Detail features

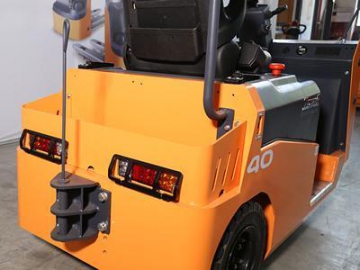

1. Traction mechanism
The drivers can operate the traction mechanism without getting off the tugger, thus improving working efficiency.

2. Side loading and unloading of storage battery
Side loading and unloading of storage battery can effectively reduce the changing time of batteries so that the maintenance and changing of batteries can be more convenient. This is suitable for working conditions which require high working intensity. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.

3. Regenerative braking
This tugger adopts regenerative braking which can generate highly efficient and powerful braking force, thus shortening braking length of the tugger. This can be a compensation of poor braking effect caused by brake pad wear of pure mechanical brake.

Structural Drawings
Parameters
Product type XT40
Driving mode Electric
Operating mode Sitting
Wheel Front/back Pneumatic tyre
Wheel number Front/back 1/2x
Max traction force Rated value of 3 min
N(kgf)
4000(400)
Rated traction force (traction ability) Rated value of 60 min
N(kgf)
1000(100)
Traction weight Rated value of 60 min
(kg)
4000
Moving speed No load (km/h) 13
Full load 8
Max gradeability No load (%) 14
Total length With hook (mm) 1728
Without hook (mm) 1592
Front overhang (mm) 266
Rear overhang (mm) 136
Total width (mm) 858
Total height (mm) 1245
Turning radius (mm) 1447
Hook length (mm) 136
Hook height (mm) 305/355
Wheel base (mm) 955
Wheel track (mm) Rear wheel 724
Ground clearance (mm) 85
Pedal height (mm) 371
Total weight (kg) With storage battery 812
Without storage battery 527
Weight distribution (with standard storage battery) (kg) Front wheel 302
Back wheel 510
Wheel dimension Front wheel 3.50-5-6PR
Back wheel 4.00-8-6PR
Main brake Hydraulic
Hand brake Manual
Storage battery voltage/capacity (V/Ah) 24/280
Storage battery weight (kg) 285
Drive motor (kW) AC 3.0
Control mode Field effect tube control
