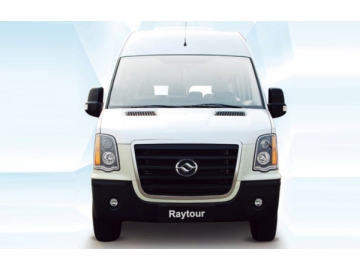

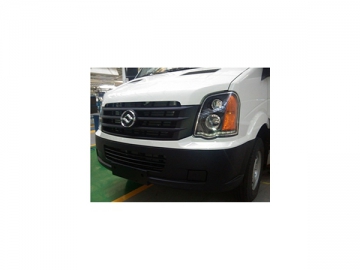

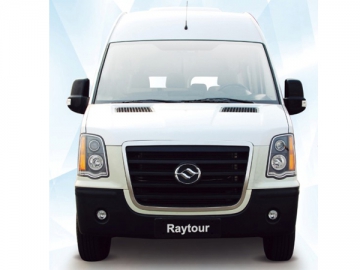

DD6600EV1 Mini Bus
Here you will find specifications for a great mini bus manufactured by Huanghai-one of the fast developing bus manufacturers in China under SG Automotive Group. The DD6600EV1 mini bus is designed in accordance with the standards of European commercial vehicles, producing a fully integral, frameless and high strength energy absorption body construction. Depending on the HCB body design concept, it realizes a perfect combination of high comfort and high bearing capacity.
Fitted with double airbags, three-point safety belt with pre-tightening functions and other security configurations, the passenger van enables safer driving. The mini bus is a pure electric minibus which comes with zero emission, low noise, fast starting and comfortable manipulation.
Configurations of the Mini Bus| Model | DD6600EV1 | |
| Parameters | Overall dimensions ( mm) | 6015/2025/2820 |
| Wheelbase ( mm) | 3715 | |
| Curb weight (kg) | 3100 | |
| Max. total mass (kg) | 4950 | |
| Payload mass (kg) | - | |
| Max. speed ( km/h) | 100 | |
| Driving range per charge (at a uniform speed, km) | 200 | |
| Charging method | Slow charging: Constant current charge Fast charging: constant current, then constant voltage | |
| Seats | 15 | |
| Rear axle gear ratio (5.1) | ● | |
| Vehicle control unit | Manufacturer | Huanghai |
| Model | ZH-VCU100 | |
| Electric motor and controller | Type | Permanent magnet synchronous motor |
| Model | TM5002 | |
| Rated power/speed/torque (kW/r/min/ N.m ) | 100/2300/400 | |
| Peak power/speed/torque (kW/r/min/ N.m ) | 150/6000/600 | |
| Arrangement type/position | Longitudinal/Front | |
| Cooling method | Water cooling | |
| Controller model | CU5012 | |
| Battery | Type | Lithium Nickel Cobalt Aluminum Oxide battery, or NCA |
| Model | DSLi71.4-350.4V | |
| Nominal voltage (V) | 350.4 | |
| Rated output current (A) | 204 | |
| Nominal capacity (Ah) | 204 | |
| Battery capacity ( kWh ) | 71.4 | |
| Appearance and Design | Sliding side door | ● |
| Integral side windows | ● | |
| White glass | ● | |
| Grey glass | ○ | |
| Sliding side window with white glass (front) | ○ | |
| Sliding side window with white glass (rear) | ○ | |
| Sliding side window with white glass (Whole window) | ○ | |
| Sliding side window with grey glass (front) | ○ | |
| Sliding side window with grey glass (rear) | ○ | |
| Sliding side window with grey glass (Whole window) | ○ | |
| Double rear door | ● | |
| Central lock | ● | |
| Front electric window | ● | |
| Electric side view mirror with steering lamp | ● | |
| Aluminum alloy wheel rim | ○ | |
| Iron wheel hub | ● | |
| Wheel cover (big) | ● | |
| Wheel cover (small) | ○ | |
| Loudspeaker | ● | |
| Subwoofer | ● | |
| 2015 type front grille-chrome plating | ○ | |
| 2015 type front grille-black | ● | |
| Safety and anti-theft design | Driver airbag | ● |
| 4 Wheel disc brakes | ● | |
| Front seats safety belts (Three point) | ● | |
| Rear seats safety belts (Two point) | ● | |
| Driver's safety belt forewarning device | ● | |
| Electronic Article Surveillance (SAS) | ● | |
| High-mounted stop lamp | ● | |
| Speed sensitive automatic padlock | ● | |
| Shutdown self-unlocking | ● | |
| Front fog lamp | ○ | |
| TPMS | ○ (optional when DVD is equipped) | |
| Reverse sensor | ● | |
| ABS EBD | ● | |
| Warning unit: Warning to pull out the keys | ● | |
| Warning unit: Warning to turn off the front lamps | ● | |
| Configurations for more comfort | Front air conditioning | ● |
| Rear air conditioning | ● | |
| Rear heating system | × | |
| Air conditioning intake with nylon mesh filter | ● | |
| Air conditioning intake with pollen filter | ○ | |
| 8-direction adjustable driver seat | ● | |
| Remotely controlled, foldable key | ● | |
| Electronic clock | ● | |
| Knitted seats | ● | |
| Middle end leather seats | ○ | |
| High end leather seats | ○ | |
| B-pillar handrail | ● | |
| Right front ceiling handrail | ● | |
| CD/MP3/Radio | ● | |
| DVD Navigation System Rear View Camera | ○ | |
| Instrument board loudspeakers (right and left) | ● | |
| Front door loudspeakers (right and left) | ● | |
| Side loudspeakers (right and left) | ● | |
| Interior lamps (3 pieces) | ● | |
| Driver and co-driver door lamps | ● | |
| Side body PVC part | ● | |
| Side body decorative sheet | ● | |
| Interior wheel trim cover | ● | |
| Remote monitoring system | ○ | |
| Battery charger installed on vehicle | ○ | |
| Note: ● Standard Configuration ○ Optional × not provided | ||
