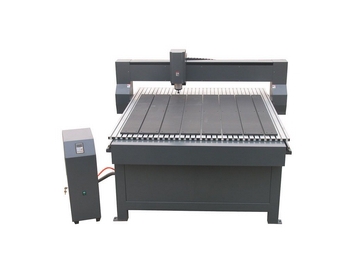

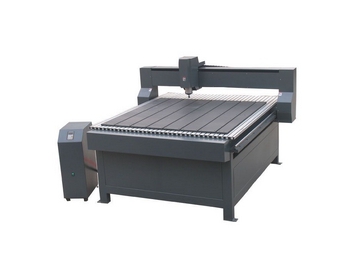

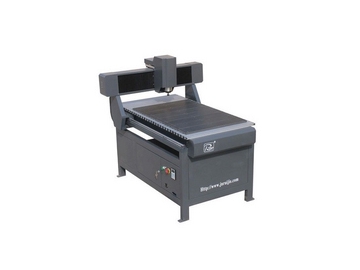

This CNC router is our standard model of CNC engraving machine specially used in the advertising industry. It adopts imported ball screws in the three axes for transmission, thereby ensuring stable and smooth operation. The X and Y axes are driven by timing belts. High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time. Ergonomic design of the CNC router simplifies the assembly and disassembly works, making the machine to be easily transported.

Applications

The advertising CNC router is mainly used for producing name tags, business plaques, gifts, building models, etc.

Specifications

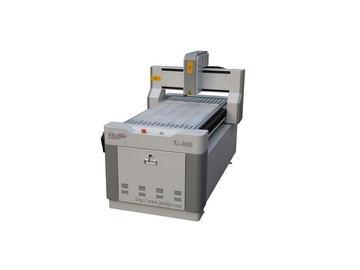

Model RJ6090 RJ1212 RJ1218 RJ1224
Working area (mm) 600x900x80mm 1200x1200x100mm 1200x1800x100mm 1200x2400x100mm
Max. engraving speed 6000mm/min
Working accuracy ±0.05/300min
Spindle power 1.5kW-2.2kW
Spindle speed 6000—24000rpm
Voltage AC220V/50HZ
Tool diameter 3.175mm, 6mm
Transmission X/Y/Z axis ball screw
Command code G Code
Features

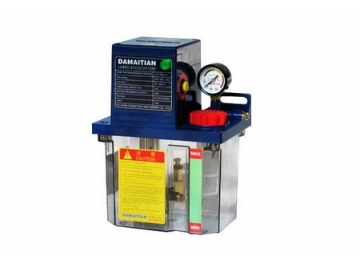

  • Automatic lubrication system

    The automatic lubrication system performs regular lubrication and maintenance by simply pressing a button.

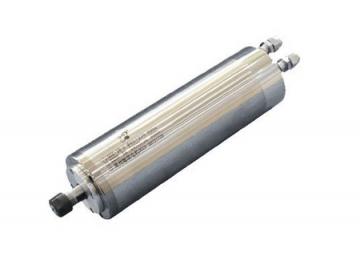

  • Powerful spindle

    High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time.

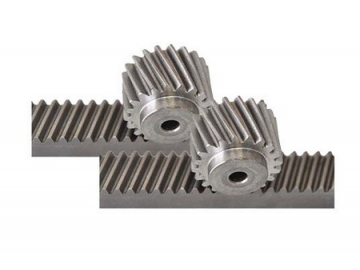

  • Rack and pinion transmission

    The rack and pinion transmission guarantees high speed and high precision.

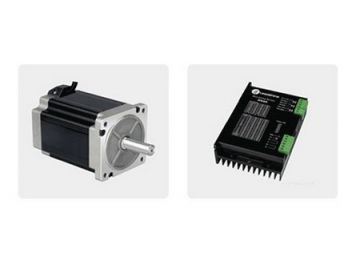

  • Stepper motor

    Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy. With no adjustments needed, the drive system makes sure the CO2 laser machine is performing at its peak efficiency with less maintenance.

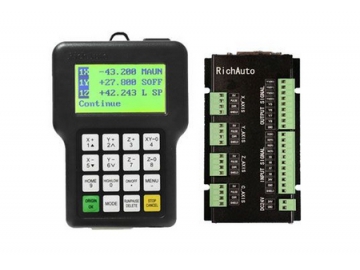

  • Richauto DSP

    DSP control plays a vital role in the operation of CNC router. Richauto DSP control can achieve fast computing speed and strong processing capacity.
    16-key keyboard, simple to use;
    Multi-language display, easy to change languages;
