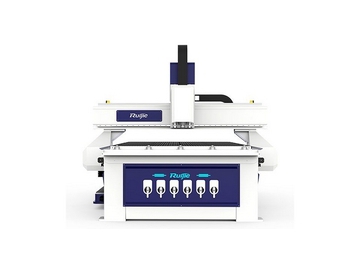

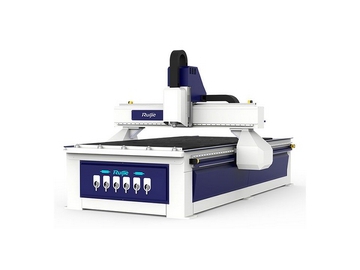

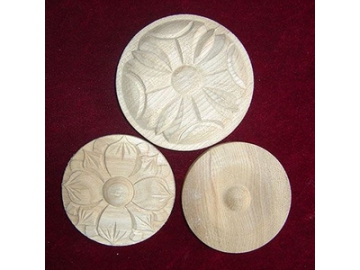

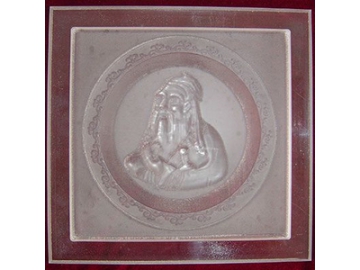

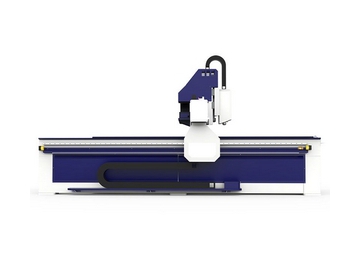

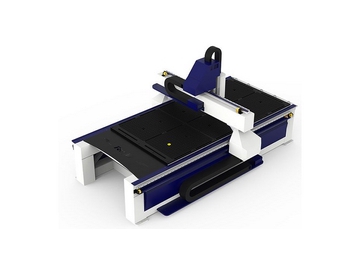

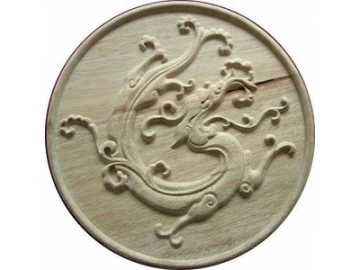

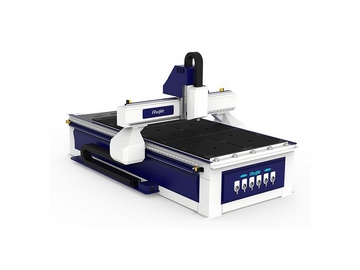

Our acrylic CNC router is suitable for cutting acrylic letters for signs. The machine body is built with a steel pipe welded structure and subjected to stabilization treatment process, ensuring high strength and minimum distortion. This acrylic CNC router is also applicable for pattern engraving, small model rough processing or fine processing.

Applications

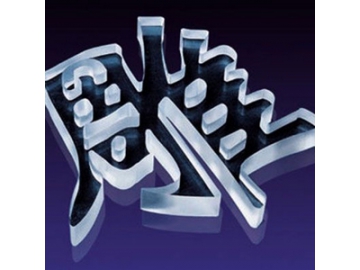

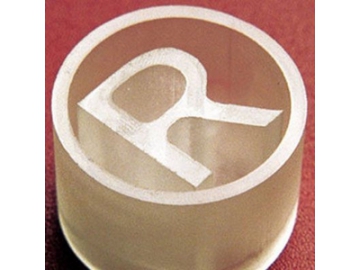

The acrylic CNC router is mainly used for cutting acrylic letters and panels.

Specifications
Model RJ1325
Working area (mm) 1300x2500mm
Z-axis travel height 180mm
X/Y-axis travel speed 3000mm/ min
Z-axis travel speed 2000mm/min
Working accuracy ±0.05/300mm
Spindle power 5.5kW
Spindle speed 6000—24000rpm
Tool diameter Ø3.175mm, Ø6mm, Ø12.7mm
X/Y/Z guide rails Linear guide rails
Transmission Rack Gear of X.Y axis, Ball Screw of Z axis
Voltage AC380V/50HZ
Dust collector 3kW
Vacuum power 5.5kW
File format DST, PLT, BMP, DXF, AI, DWG
Command code G code
Control system NC-Studio /NK105 DSP
Drive system Invt servo /Leadshine 758
Features

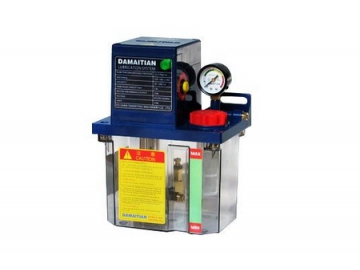

  • Automatic lubrication system

    The automatic lubrication system performs regular lubrication and maintenance by simply pressing a button.

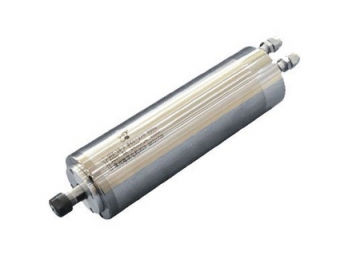

  • Powerful spindle

    High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time.

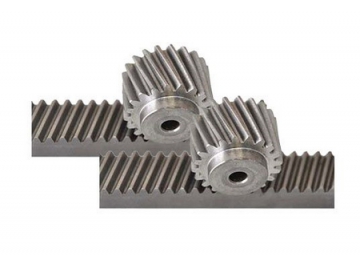

  • Rack and pinion transmission

    The rack and pinion transmission guarantees high speed and high precision.

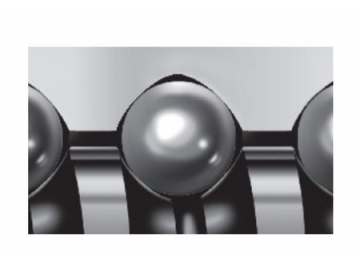

  • TBI ball screw

    High precision TBI ball screw transmission provides high speed and stable operation.

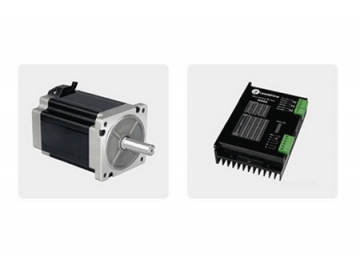

  • Stepper motor

    Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy. With no adjustments needed, the drive system makes sure the CO2 laser machine is performing at its peak efficiency with less maintenance.

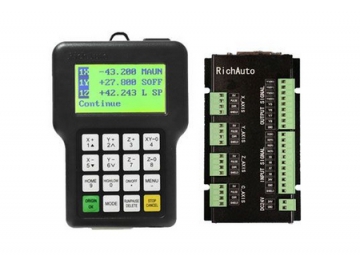

  • Richauto DSP

    DSP control plays a vital role in the operation of CNC router. Richauto DSP control can achieve fast computing speed and strong processing capacity. 16-key keyboard, simple to use; Multi-language display, easy to change languages;
