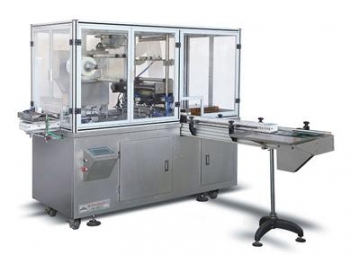

KX-400C-L Cellophane Overwrapping Machine
Request a Quote
Introduction
The KX-400C-L cellophane overwrapping machine carries out feeding, stacking, wrapping, heat seal, sorting and application of anti-counterfeit tear tape. It is widely used for cellophane overwrapping of pharmaceutical, health care products, food, cosmetic, audio-video products, stationery, daily necessities and more.
| Efficiency | 12-30 case/min |
| Size | (10-300)×(50-200)×(20-80)mm |
| Power supply | 220V 50HZ |
| Power | 0.75kw |
| Heating power | 4kw |
| Machine size | 2200×935×1960mm |
| Conveyor size | 1800×500×150mm |
| Machine weight | 1000Kg |
| Application | One or more cases/cartons |
- With a 0.75KW power supply, the cellophane overwrapping machine consumes less electricity than heat shrink wrappers.
- The machine is protected from the outside environment using glass, thus protecting products inside against damp and dirt.
- The wrapper automatically operates and carries out feeding, stacking, wrapping, heat seal, sorting out and counting.
- Our intelligent and humanized machine features an automatic return to zero/rest function, making it easy to operate, maintain and repair.
- The machine is suitable for cellophane overwrapping products in all size and shapes, with just a few simple component changes.
- Device one ----feeding inlet (film feeding inlet)

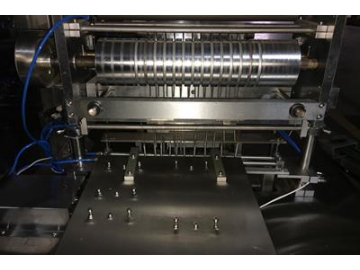

- Device two ---- film loading unit
- Device three ---- wrapping products
- Device four---- end products convey
