Panty Liners / Panty Shields Production Line
Panty Liner Production Line
Model No.
PX-HD-2000HX-SF Full-servo Horizontal Panty Liner Production Line
PX-HD-1800HX-BSF Semi-servo Horizontal Panty Liner Production Line
PX-HD-1500HX-BP Full-automatic Horizontal Panty Liner Production Line
PX-HD-1200HX Semi-automatic Horizontal Panty Liner Production Line

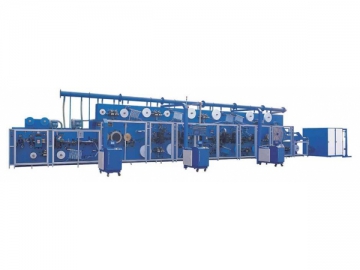

Product Names: Full-servo Horizontal Panty Liner Production Line
1.
Design speed:
Output (horizontal configuration): 2000pcs/min
Output (vertical configuration): 1300pcs/min
Regular speed:
Output (horizontal configuration): 1800-2000pcs/min
Output (vertical configuration): 1000pcs/min
2.
Design speed:
Output (horizontal configuration): 1800pcs/min
Output (vertical configuration): 1100pcs/min
Regular speed:
Output (horizontal configuration): 1600-1800pcs/min
Output (vertical configuration): 800pcs/min
3.
Design speed:
Output (horizontal configuration): 1500pcs/min
Output (vertical configuration): 1000pcs/min
Regular speed:
Output (horizontal configuration): 1300-1500pcs/min
Output (vertical configuration): 600pcs/min
4.
Design speed:
Output (horizontal configuration): 1200pcs/min
Output (vertical configuration): 700pcs/min
Regular speed:
Output (horizontal configuration): 1000-1200pcs/min
Output (vertical configuration): 400pcs/min
Equipment Functions & Parameters
1. A high level of automation saves time and labor costs. Allows upgrade as per customers requirements.
2. PLC system features an ergonomic design. An optional kit is available for production data storage.
3. Compatible with vision system for live monitoring and check of product size, location, defect, missing items, etc.
4. Other optional features available upon request, including
a. Automatic servo control for roll replacement
b. VFD for roll replacement
c. Semi-automatic roll unwinding
Available in a vertical configuration.
Main Technical Parameters

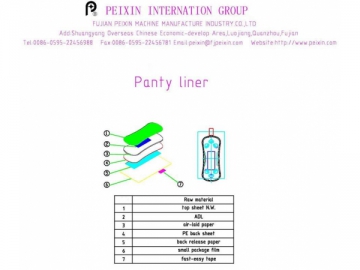

1. Completed Products: Cotton core type and ultra-thin type fast-easy package panty liner
2. Designed speed: Horizontal, 2000 PCS/min; Vertical, 1300 PCS/min
3. Production speed: Horizontal, 1800-2000 PCS/min; Vertical, 1000 PCS/min
4. Overall dimensions: 15m(L)×4m(W)×3 m(H)
5. Machine power: approx. 160KW (380V, 50Hz)
6. Machine weight: about 28 T
