Wheel Housing Liners

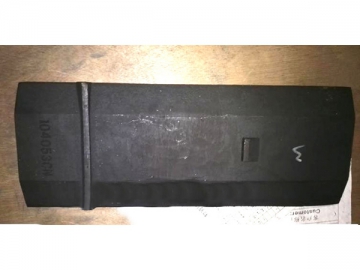

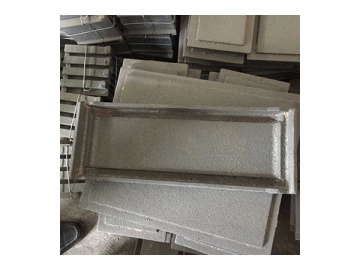

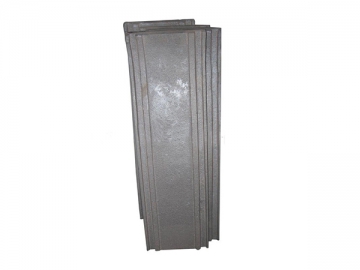

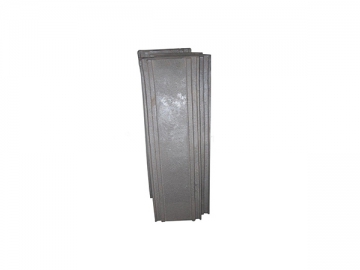

- Side Liner
- Top Liner

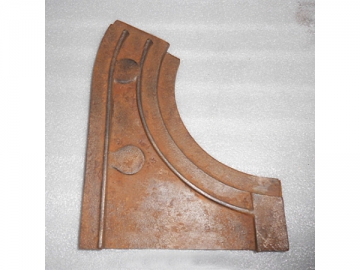

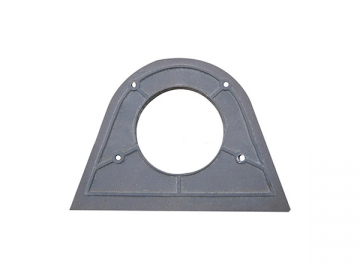

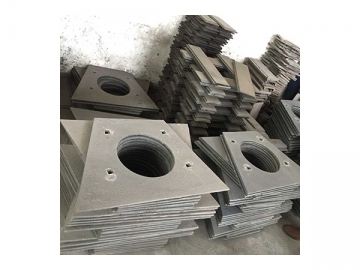

- End Liner

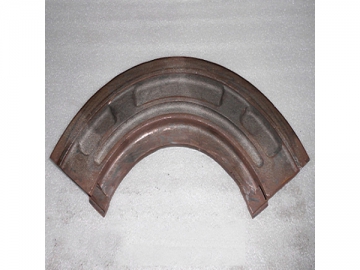

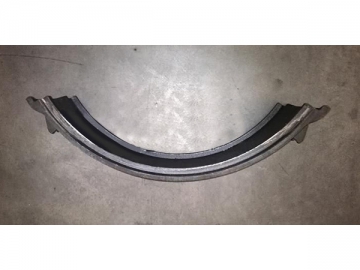

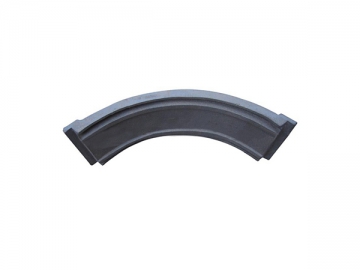

- Curved Top Liner
- Wheel Housing Liners
Name: Blast Wheel Housing Liners
Materials: Alloy Steel, High chromium steel
Applicable machine: Shot blasting machine for cleaning and surface hardening of the parts that have less resistance to impacts
Applicable media: Steel grit or shot for blasting, rust removing, descaling and surface hardening purposes
Customizable or not: Yes
Part model: Based on customers needs
Order quantity: Based on customers needs
As essential shotblast spares responsible for abrasion resisting purposes, the wheel housing liners are cast from heat-treated high-chrome alloy steels for extended wear life. They are mainly designed to protect the wheel housing inner walls from being damaged by extreme abrasive wear caused by shot action. HANDY is able to make the blast wheel parts to customers' individual specifications. They ensure the proper fit for interchangeability with OEM parts.
We are available to customize Wheel Housing Liners for SINTO, DISA, PANBORN, WHEELABRATOR and OMSG shot blasting machines
Brands of Compatible Shot Blasting Machines
Schematic Diagram
1. Samples for Russian customer
- Wheel housing side liner for DISA shot blasting machine
- Wheel housing top liner for DISA shot blasting machine
2. Samples for Malaysian customer
- Wheel housing side liner for SINTO shot blasting machine
- Wheel housing top liner for Taiwan CHUNHUI shot blasting machine
- Wheel housing side liner for Taiwan JIAFU shot blasting machine
| High chromium alloy cast iron | High manganese alloy steel | |||||||
| Chemical compositions % | C | 2.7-3.1 | Mechanical properties | Tensile strength kg/mm2 | ≤ 40 | Chemical compositions % | C | 0.9-1.3 |
| Si | <1.0 | Si | ≤0.8 | |||||
| Mn | 0.8-1.1 | Hardness HS | >70 | Mn | 11-14 | |||
| P | <0.06 | P | <0.07 | |||||
| Cr | 25-30 | Impact resistance kgm /cm 2 | >0.3 | S | <0.05 | |||
| S | <0.05 | 0 | 0 | |||||
