  • Blast Cabinet Wall Liner
  • Blast Cabinet Wall Liner
  • Blast Cabinet Wall Liner
  • Blast Cabinet Wall Liner
  • Blast Cabinet Wall Liner

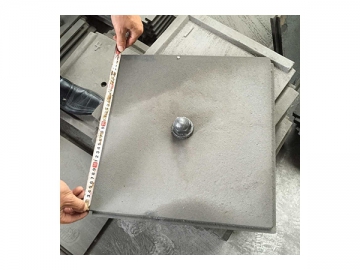

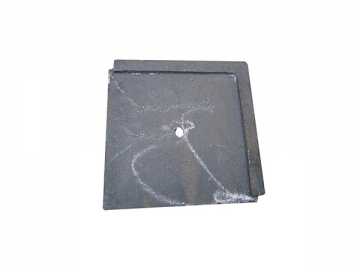

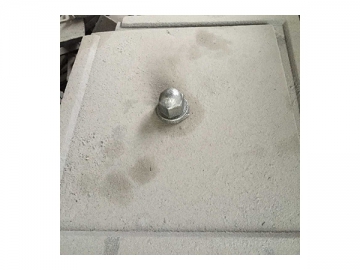

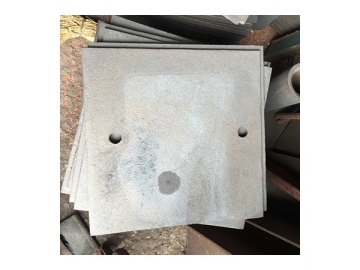

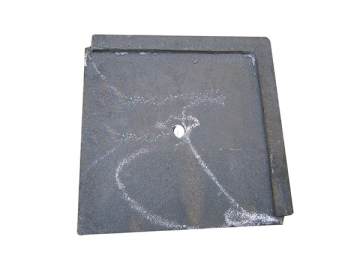

Name: Blast Cabinet Wall Liners
Materials: ZGMn13
Applicable media: Stainless steel shots, cast steel shots, aluminum shots, zinc shots, copper shots
Customizable or not: Yes
Part model: Based on customers needs
Order quantity: Based on customers needs

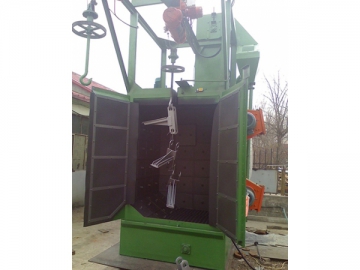

Applicable machine: Shot blasting machine; ideal for cleaning, derusting, descaling and surface hardening small castings, forgings, stamping parts, gears, springs, etc. in machine tool, automobile, textile machinery, metallurgy, chemical, aerospace and other industries; especially suitable for the parts that has low resistance to impacts.

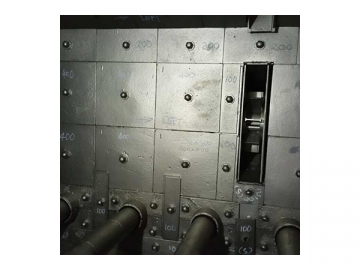

Our blast cabinet wall liners are cast from ZGMn13 which is the best material for interior protection of blast cabinets, providing high wear resistance, excellent machinability and remarkably low cost. This can effectively reduce maintenance cost.

As a leader in shot blast supplies, HANDY is able to make blast cabinet wall liners for SINTO, DISA, PANBORN, WHEELABRATOR, OMSG and other brands shot blasting machines to customers' own specifications. Our custom-made blast chamber wear plates ensure the proper fit for original parts.

  • Blast cabinet wall liners for 360/253909-Q3750 shot blasting machine with Lifting Hook
  • Blast cabinet wall liners for 360/253909-Q3750 shot blasting machine with Lifting Hook
Mechanical & Chemical Properties
High chromium alloy cast iron High manganese alloy steel
Chemical compositions % C 2.7-3.1 Mechanical properties Tensile strength kg/mm2 ≤ 40 Chemical compositions % C 0.9-1.3
Si <1.0 Si ≤0.8
Mn 0.8-1.1 Hardness HS >70 Mn 11-14
P <0.06 P <0.07
Cr 25-30 Impact resistance kgm/cm 2 >0.3 S <0.05
S <0.05 0 0
