Truing and dressing are playing a vital role in today's grinding process, and their purposes are to remove dull grits, improve wheel sharpness and concentricity and shape of the wheels. Compared with mono diamond and PCD, CVD diamond has many advantages in dressing applications.

CVD Diamond Dresser Log
With excellent hardness, sharpness and thermal stability, our CVD diamond dresser log can be used in different shapes and sizes. In addition, the CVD diamond dresser log can be made into single and multi-point dressers, shaped tools for form and profile, diamond dressing rollers, etc.


Typical Specifications of CVD Diamond Dresser Log
5.0*0.2*0.2t 8.0*0.5*0.5t 3.0*1.0*0.8t 5.0*2.0*1.0t 5.0*1.3*1.3t
2.5*0.5*0.3t 5.0*1.0*0.5t 2.5*1.3*0.8t 4.0*1.5*1.0t 2.0*1.5*1.5t
3.0*1.0*0.3t 2.0*0.6*0.6t 5.0*0.9*0.9t 5.0*1.1*1.1t 4.0*1.5*1.5t
10.0*3.5*0.3t 5.0*0.7*0.7t 3.0*1.0*1.0t 1.5*1.2*1.2t 4.0*2.8*1.5t
2.0*0.4*0.4t 1.5*0.8*0.8t 8.0*1.0*1.0t 2.0*1.2*1.2t 2.0*2.0*1.8t
5.0*0.6*0.4t 4.5*0.8*0.8t 10.0*1.0*1.0t 5.0*1.2*1.2 3.0*2.0*2.0t
1.5*0.5*0.5t 10.0*0.8*0.8t 3.0*1.5*1.0t 4.0*1.3*1.3t 3.0*3.0*2.5t

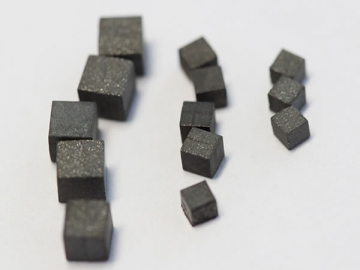

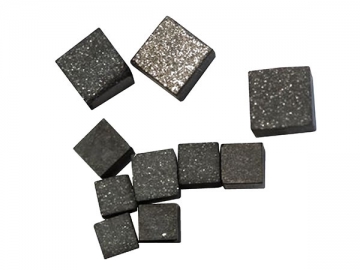

CVD Diamond Dresser Cube
CVD diamond dresser cube features of good hardness, sharpness and thermal stability, compared with the similar CVD diamond products, this CVD diamond dresser cube is of higher surface roughness and superior retention for sintering. Our CVD diamond dresser cube can be offerd at regular and same size, so that making much ease in the manufacture and final applications.

Typical Specifications and Applications of CVD Diamond Dresser Cube
Specifications Tolerances Applications
0.6*0.6*0.6 +/- 0.05mm Dressing rollers
0.8*0.8*0.8
1.0*1.0*1.0 +/- 0.08mm Single and multi-point dressers
1.2*1.2*1.2
1.5*1.5*1.5 +/- 0.10mm
1.8*1.8*1.8
2.0*2.0*2.0
2.2*2.2*2.2
2.5*2.5*2.5
Worldia is a professional CVD diamond dresser log and cube manufacturer and supplier, based in China. We offer many kinds of products including glass cutting tool, PCD cutting tool, diamond die blank, PCD saw blade, and much more.
