Application:
The CVD diamond wheel dressers are used for dressing various size types grinding wheels consisting of white corundum, brown corundum, and silicon carbide.

Description:

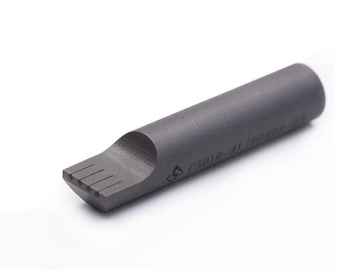

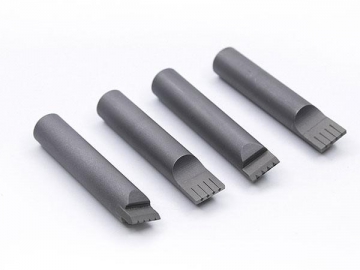

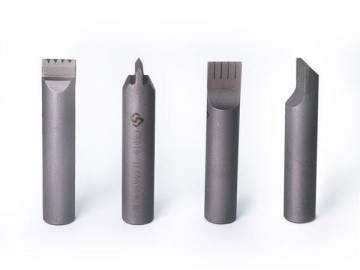

Worldia CVD diamond wheel dresser for grinding wheels uses the special manufacture process that firstly is sintered under high pressure at high temperature and then welded. The diamond dressers choose high-quality import CVD diamond tips, which can dress various size types grinding wheel.

Features
1. Long service life and reduce the dressing costs per workpiece.
2. With high precision and efficiency, this dressing tool can optimize the mechanical capacity.
3. CVD diamond wheel dresser can be installed rapidly in the grinding wheel.
4. Customer can choose different diamond dressing tools on basis of diameter, width, and grain size of the grinding wheels.
5. The transverse feed rate and cutting is dependent upon grain size, the lower the feed rate, the finer the surface finish.

Specifications
Specification Material Work Area
C5010—L1509 CXT+CVDD Grinding Wheel Diameter<250mm, Grain Size 80#—120#
C5010—L161616 CVDD Grinding Wheel Diameter<250mm, Grain Size 60#—150#
C5010—L202020 CVDD Grinding Wheel Diameter<250mm, Grain Size 46#—150#
C5010—L501515 CVDD Grinding Wheel Diameter<250mm, Grain Size 46#—60#
C5010—4*L901010 CXT Grinding Wheel Diameter<250mm, Grain Size 46#—100#
C5010—4*L701010 CVDD Grinding Wheel Diameter<250mm, Grain Size 46#—60#
C5010—4*L700808 CVDD Grinding Wheel Diameter<250mm, Grain Size 60#—80#
C5010—4*L700606 CVDD Grinding Wheel Diameter<250mm, Grain Size 80#—120#
C5010—4*L901212 CVDD+MD Grinding Wheel Diameter<250mm, Grain Size 46#—100#
C5010—4*L901212 CVDD+MD Grinding Wheel Diameter<250mm, Grain Size 46#—60#

For instance, C50 10 —5*L 901515
C50: Length of Shank 50mm
10: Diameter of Shank 10mm
5: Amount of Diamond Bars 5
90: Length of Diamond Bar 9mm
15: Width of Diamond 1.5mm
15: Thickness of Diamond 1.5mm

Materials:
Our CVD diamond wheel dressers for grinding wheel uses high quality CVD for tips and tungsten carbide for holders.

Packaging:

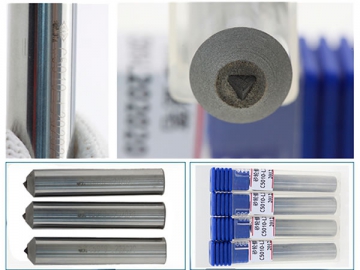

The CVD diamond wheel dressers for grinding wheel use plastic case for packing.

Quality Control:
We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services.

OEM/ODM Service:
We can custom-tailor various types of nonstandard diamond wheel dressers.

Contact:
Worldia is a professional CVD diamond dressers manufacturer based in China. We can also produce other kinds of diamond cutting tools, such as diamond PCD inserts, diamond glass cutters, PCD scribing wheels, diamond die blanks, and much more.
