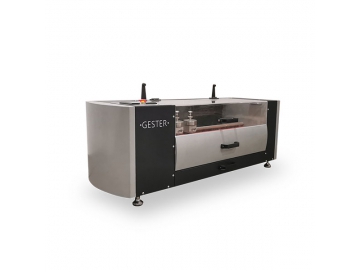

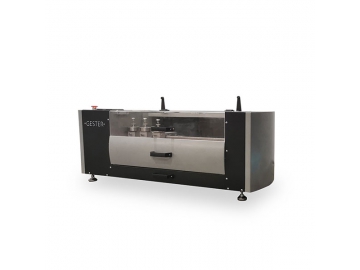

DIN Abrasion Tester GT-KB03B

DIN Abrasion Tester GT-KB03B
DIN Abrasion Tester GT-KB03B
DIN Abrasion Tester GT-KB03B
DIN Abrasion Tester GT-KB03B
DIN Abrasion Tester GT-KB03B
DIN Abrasion Tester GT-KB03B
Request a Quote

Application
DIN abrasion tester is used to determine wear performance tests of materials like elastic material, rubber, tires, conveyor belts, and shoe soles.

Feature
1.Paint baking process used on machine body, allowing for easy maintenance

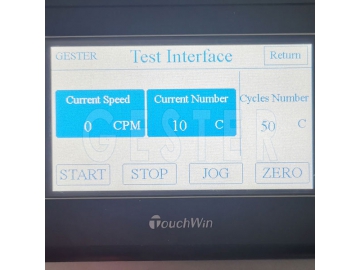

2.Color touch-screen control, digital counting, automatically stop after finishing test
3.Equipped with vacuum suction port to automatically clean dust during test

Key Specification
Model GT-KB03B-1 GT-KB03B-3
Test positions 1 3
Control mode Touch screen controller
Diameter of wear wheel 150mm
Specimen dimension ø16.2 mm x thickness 6-10 mm
Specimen moving speed 4.2 mm/r
Weights Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)
Wear wheel speed 40±1rpm
Inclination angle 3°, support shaft of test piece becomes vertical angle with roller
Grit size of sandpaper #60
Roller length 460mm
Wear stroke 40m
Power supply 1∮AC 220V 50/60HZ 3A
Standards

DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867,EN ISO 20344-2020 section 8.4, AS/NZS 2210.2 section 8.3, ISO 4649, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, SATRA TM174, EN 12770

Accessories
Standard accessories 1set 2.5N weights
1set 5N weights
1pc P60# standard abrasive paper
1pc Standard cutting die

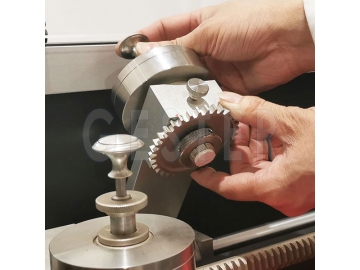

1pc Metal blob(grinding head)
1pc 2mm gauge
1pc Power line
Optional accessories Optional GT-G203H electronic balance (210g, accuracy) 1mg)
Optional Standard rubber
How It Works?

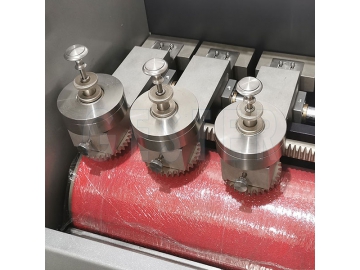

Under certain touching pressure and contact area, the sample forms a certain angle with the sandpaper and determines its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the roller surface. The sample is pressed against the roller with sandpaper, making the sample lateral moving along the roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.
