Silicone rubber insulating boots are also called cold application insulating boots. The product can be used in switchgear and transformers with insufficient clearance to operate in air or to prevent flashovers due to rodents or extreme humidity.

Applications

The highly elastic insulating boots made of silicone can be installed between the cable lug and the bushing to prevent the metal parts, such as terminals, from being oxidized and corroded. Moreover, the insulating boots are also used to ensure the insulation between the phases.

Features
  • The insulating boots are quick and easy to be installed, removed and replaced. During the installation, no special tools are required.
  • The product has unlimited shelf life.

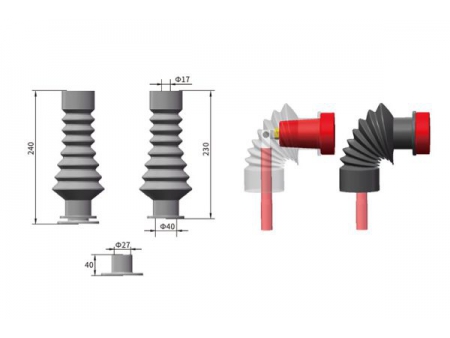

  • One product can be used for either straight or right-angled configuration.
  • The specific requirements for size and color can be customized.
Technical Data
Maximum System Voltage 17.5kV
Basic Impulse Level 95kV
Collar Size 27mm
Bushing Diameter 31-45mm
Bushing Types 250A/630A
Cable Cross Section 35-400mm2
