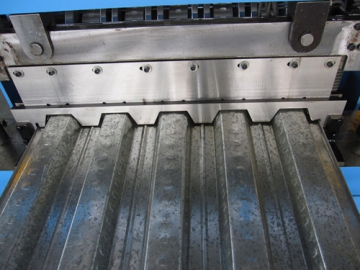

Steel Decking Roll Forming Machine

Steel Decking Roll Forming Machine
Steel Decking Roll Forming Machine
Steel Decking Roll Forming Machine
Steel Decking Roll Forming Machine
Request a Quote
Profile Drawing
Main Technical Parameters
  • De-coiler: Passive open the coil, manual expansion
  • Capability of de-coiler: 5T
  • Frame of machine: Welding flange beam
  • Form of guide feeding: Side roller type
  • Machine form: Chain transmission (20A, double row)
  • The diameter of main shaft: Ø90mm
  • Power of main motor: 22kw
  • Working speed: 0-15 m/min (not including cutting time)
  • Roller station: 28 steps
  • Material of roller: NO.45 steel, coating chrome
  • The surface of roller coating hard chromium: 0.05mm
  • Material of shaft: NO.45 steel, thermal refining
  • Power of hydraulic motor: 5.5kw
  • Hydraulic station pressure: 20Mpa
  • Oil pump of hydraulic station: Gear pump
  • Cutter: Hydraulic shear
  • The material of cutting blade: Cr12Mov
  • Quenching rigidity: HRC58℃-60℃
  • Material thickness: 0.7 -1.6mm
  • Feeding width: 1250mm
  • Tolerance of length: ±2mm
  • Controlling system: PLC frequency control
  • PLC: Panasonic
  • Encoder: Omron
  • Dimension: 15500×1400×1300(mm)

Working Process
Passive Open The Coil → Feeding Panel with Guide → Roll Forming → Cutting With Fixed Length → Output with Supporter

Technological Process Figure
  • Material Feeding Device
  • Feeding
  • Hydraulic Forming
  • Hydraulic Cutting
  • Discharging Device

Equipment Including
Passive de-coiler(5T); forming machine; hydraulic cutting; hydraulic station; PLC computer control cabinet; output table
