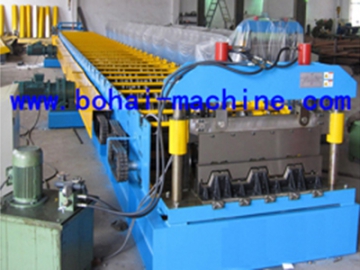

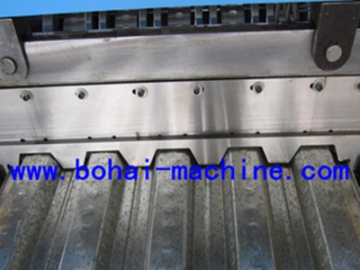

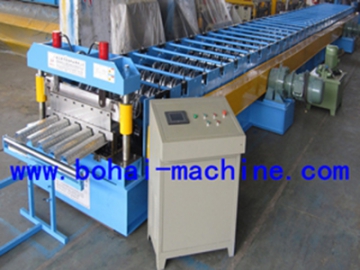

Steel Decking Roll Forming Machine

Steel Decking Roll Forming Machine
Steel Decking Roll Forming Machine
Steel Decking Roll Forming Machine
Steel Decking Roll Forming Machine
Request a Quote
This product has been discontinued and removed from our shelves.

Main Technical Parameter
1. Un-coiler: Passive open the coil, manual expansion
2. Capability of un-coiler: 5T
3. Frame of machine: Welding flange beam
4. Form of guide feeding: Side roller type
5. Machine form: Wallboard and chain transmission
6. The diameter of main shaft: Ø 85mm
7. Chain: 16A single row
8. Power of main motor: 22kw
9. Working speed: 8-15m/min
10. Roller station: 28 steps
11. Material of roller: NO.45 steel forgings
12. The surface of roller coating hard chromium: 0.05mm
13. Motor of punching and flanging: 4kw
14. Power of hydraulic motor: 5.5kw
15. Oil pump of hydraulic station: Gear pump
16. Cutter: Hydraulic forming shear
17. Material of cutting blade: Cr12
18. Quenching rigidity: HRC58-60°
19. Material thickness: 0.8 -1.2mm
20. Feeding width: 1000mm
21. Tolerance of length: ± 2mm
22. The type of transducer: Panasonic
23. PLC controller: Panasonic
