Excellent sound quality in conjunction with a robust design characterizes HTDZ meeting microphones. HTDZ offers a varied range of microphones for all applications: gooseneck, acoustical boundary and desktop microphones, etc. and the range covers all situations in which microphones are implemented. All microphones designed with the latest Anti-EMI/RFI technologies.
Technical Specifications of the HT-D63, HT-D66 Meeting Microphone
Model No. | HT-D63 | HT-D66 |
Capsule Type | Condenser | Condenser |
Frequency Response | 30Hz-20KHz | 30Hz-20KHz |
Polar Pattern | Cardioid | Cardioid |
Output Impedance (Ohm) | 200-Unbalanced | 200-Unbalanced |
Sensitivity (±2dB) | -42dB | -42dB |
Power Supply | Phantom 48V/DC3V | Phantom 48V/DC3V |
Mic Length (mm) | 390 | 390 |
N.W. | 0.6kg | 0.6kg |
Base Dimension (W×D×H) mm | 114×168×57 | 116×145×46 |
Indicator | Base OLED/Mic LED/Touch ON/OFF | Base OLED/Mic LED |
S/N | 65dB | 65dB |

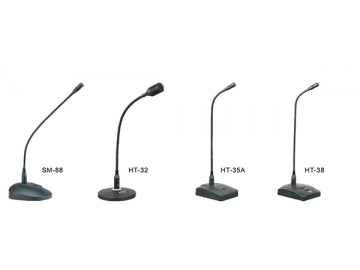

Technical Specifications of the SM-88, HT-32, HT-35A, HT-38 Meeting Microphone
Model No. | SM-88 | HT-32 | HT-35A | HT-38 |
Capsule Type | Condenser | Dynamic | Condenser | Condenser |
Frequency Response | 40Hz-16KHz | 60Hz-16KHz | 100Hz-16KHz | 100Hz-16KHz |
Polar Pattern | Cardioid | Cardioid | Cardioid | Cardioid |
Output Impedance (Ohm) | 200-Unbalanced | 600-Balanced | 200-Unbalanced | 200-Unbalanced |
Sensitivity (±2dB) | -42dB | -52dB | -42dB | -42dB |
Power Supply | DC3V | | DC3V | DC3V |
Mic Length (mm) | 415 | 483 | 415 | 415 |
N.W. | 0.41kg | 1.08kg | 0.62kg | 0.62kg |
Base Dimension (WxDxH) mm | 125x134x38 | Diameter 130 | 110x130x34 | 110x130x34 |
Indicator | Base Indicator | | Base Indicator | Base Indicator |

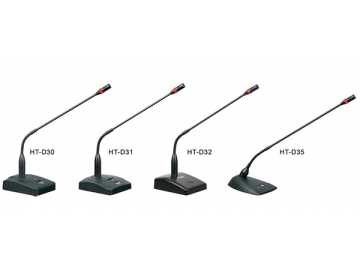

Technical Specifications of the HT-D30, HT-D31, HT-D32, HT-D35 Meeting Microphone
Model No. | HT-D30 | HT-D31 | HT-D32 | HT-D35 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
Polar Pattern | Hypercardioid | Hypercardioid | Hypercardioid | Hypercardioid |
Output Impedance (Ohm) | 200-Unbalanced | 200-Unbalanced | 200-Unbalanced | 200-Unbalanced |
Sensitivity (±2dB) | -40dB | -40dB | -40dB | -40dB |
Power Supply | DC3V | DC3V | DC3V | DC3V |
Mic Length (mm) | 430 | 430 | 430 | 465 |
N.W. | 0.65kg | 0.64kg | 0.62kg | 0.45kg |
Base Dimension (WxDxH) mm | 110x130x34 | 110x130x34 | 102x130x40 | 100x155x35 |
Indicator | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED |

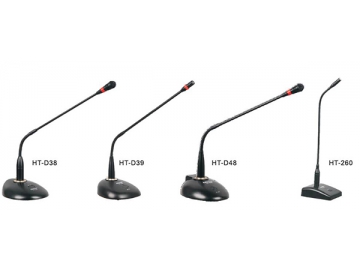

Technical Specifications of the HT-D38, HT-D39, HT-D48, HT-260 Meeting Microphone
Model No. | HT-D38 | HT-D39 | HT-D48 | HT-260 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 20Hz-18kHz | 100Hz-16kHz |
Polar Pattern | Hypercardioid | Cardioid | Cardioid | Cardioid |
Output Impedance (Ohm) | 75 Unbalanced | 200-Unbalanced | 75-Unbalanced | 200-Unbalanced |
Sensitivity (±2dB) | -40dB | -40dB | -40dB | -42dB |
Power Supply | Phantom 48V/DC3V | DC3V | Phantom 48V/DC3V | DC3V |
Mic Length (mm) | 445 | 430 | 410 | 450 |
N.W. | 0.73kg | 0.58kg | 0.78kg | 0.64kg |
Base Dimension (WxDxH)mm | 115x140x30 | 125x135x41 | 114x140x37 | 102x130x40 |
Indicator | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator |

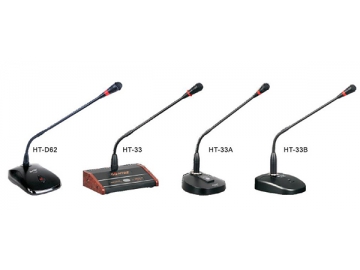

Technical Specifications of the HT-D62, HT-33, HT-33A, HT-33B Meeting Microphone
Model No. | HT-D62 | HT-33 (Chime) | HT-33A (Chime) | HT-33B (Chime) |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 20Hz-20kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
Polar Pattern | Cardioid | Cardioid | Cardioid | Cardioid |
Output Impedance (Ohm) | 200-Balanced | 200-Unbalanced | 200-Unbalanced | 200-Unbalanced |
Sensitivity (±2dB) | -42dB | -45dB | -38dB | -38dB |
Power Supply | Phantom 48V/DC 3V | DC9V/AC 220V | DC9V | DC9V/AC 220V |
Mic Length (mm) | 390 | 390 | 420 | 420 |
N.W. | 0.6kg | 0.72 | 0.67kg | 0.67kg |
Base Dimension (WxDxH)mm | 114x160x57 | 183x112x43 | 126x150x39 | 126x150x39 |
Output/Indicator | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED |

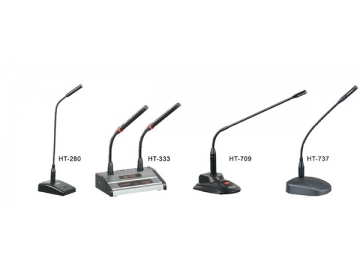

Technical Specifications of the HT-280, HT-333, HT-709, HT-737 Meeting Microphone
Model No. | HT-280 | HT-333 (Auto-on/off) | HT-709 | HT-737 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
Polar Pattern | Cardioid | Hypercardioid | Cardioid | Cardioid |
Output Impedance (Ohm) | 200-Unbalanced | 200-Unbalanced | 200-Balanced | 200-Unbalanced |
Sensitivity (±2dB) | -38dB | -38dB | -40dB | -38dB |
Power Supply | DC3V | Phantom 48V/DC9V | Phantom 48V/DC9V | DC3V |
Mic Length (mm) | 460 | 310 | 460 | 410 |
N.W. | 0.66kg | 0.74kg | 0.88kg | 0.67kg |
Base Dimension (WxDxH) mm | 102x130x40 | 183x112x43 | 110x150x33 | 126x150x39 |
Indicator | Base Indicator | Base Indicator/Mic LED | Base Indicator | Base Indicator |

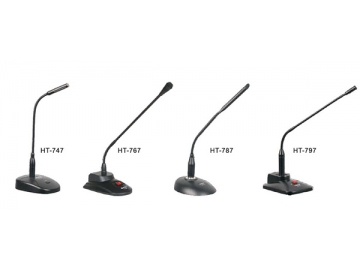

Technical Specifications of the HT-747, HT-767, HT-787, HT-797 Meeting Microphone
Model No. | HT-747 | HT-767 | HT-787 | HT-797 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
Polar Pattern | Hypercardioid | Cardioid | Cardioid | Cardioid |
Output Impedance (Ohm) | 200-Unbalanced | 200-Balanced | 200-Balanced | 200-Balanced |
Sensitivity (±2dB) | -38dB | -38dB | -38dB | -38dB |
Power Supply | DC9V | Phantom 48V/DC3V | Phantom 48V | Phantom 48V |
Microphone Length (mm) | 400 | 470 | 435 | 390 |
N.W. | 0.67kg | 0.65kg | 1.47kg | 1.50kg |
Base Dimension (WxDxH)mm | 126x150x39 | 110x150x33 | 126x155x33 | 112x161x29 |
Indicator | Base Indicator | Base Indicator | Base Indicator | Base Indicator |

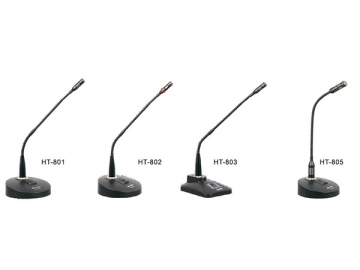

Technical Specifications of the HT-801, HT-802, HT-803, HT-805 Meeting Microphone
Model No. | HT-801 | HT-802 | HT-803 | HT-805 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-20kHz | 40Hz-16kHz |
Polar Pattern | Cardioid | Cardioid | Cardioid | Cardioid |
Output Impedance(Ohm) | 200-Unbalanced | 200-Unbalanced | 200-Unbalanced | 200-Unbalanced |
Sensitivity (±2dB) | -38dB | -38dB | -38dB | -38dB |
Power Supply | DC3V | DC3V | DC3V | DC3V |
Mic Length (mm) | 405 | 410 | 410 | 380 |
N.W. | 0.79kg | 0.79kg | 0.70kg | 0.78kg |
Base Dimension (WxDxH)mm | 140x141x39 | 140x141x39 | 110x146x28 | 140x141x39 |
Output/Indicator | Base Indicator | Base Indicator/Mic LED | Base Indicator | Base Indicator |

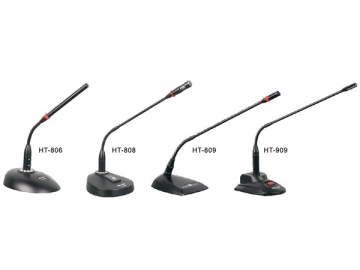

Technical Specifications of the HT-806, HT-808, ht-809, HT-909 Meeting Microphone
Model No. | HT-806 | HT-808 | HT-809 | HT-909 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 20Hz-20kHz | 20Hz-20kHz |
Polar Pattern | Cardioid | Hypercardioid | Cardioid | Hypercardioid |
Output Impedance(Ohm) | 200-Balanced | 200-Balanced | 75-Balanced | 200-Balanced |
Sensitivity (±2dB) | -38dB | -38dB | -40dB | -40dB |
Power Supply | Phantom 48V/DC9V | Phantom 48V/DC9V | Phantom 48V/DC3V | Phantom 48V/DC9V |
Mic Length (mm) | 415 | 430 | 445 | 440 |
N.W. | 1.53kg | 0.68kg | 0.69kg | 0.81kg |
Base Dimension (WxDxH)mm | 130x155x36 | 130x145x40 | 103x155x32 | 100x144x38 |
Indicator | Base Indicator | Mic LED | Mic LED | Base Indicator |

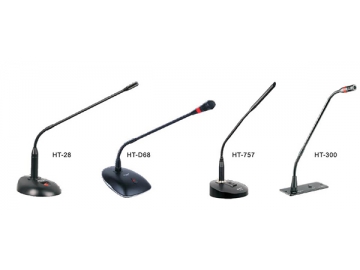

Technical Specifications of the HT-28, HT-D68, HT-757, HT-300 Meeting Microphone
Model No. | HT-28 | HT-D68 | HT-757 | HT-300 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 30Hz-20kHz | 20Hz-20kHz | 40Hz-16kHz | 40Hz-16kHz |
Polar Pattern | Uni-Directional | Cardioid | Hypercardioid | Hypercardioid |
Output Impedance(Ohm) | 75-Balanced | 200-Balanced | 200-Unbalanced | 75-Unbalanced |
Sensitivity (±2dB) | -45dB | -42dB | -38dB | -40dB |
Power Supply | Phantom 48V | Phantom 48V/DC3V | DC9V | Phantom 48V |
Mic Length (mm) | 455 | 390 | 400 | 390 |
N.W. | 1.10kg | 0.6kg | 0.67kg | 0.73kg |
Base Dimension (WxDxH)mm | 115x138x40 | 116x145x46 | 126x150x39 | 130x55x102 |
Output/Indicator | Base Indicator | Base Indicator/Mic LED | Base Indicator | Base Indicator/Mic LED |

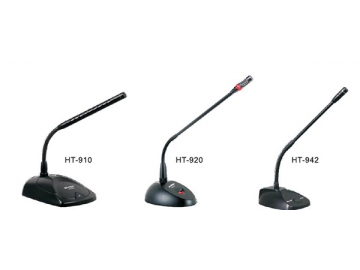

Technical Specifications of the HT-910, HT-920, HT-942 MeetingMicrophone
Model No. | HT-910 | HT-920 | HT-942 |
Capsule Type | Condenser | Condenser | Condenser |
Frequency Response | 30Hz-20kHz | 30Hz-20kHz | 40Hz-18kHz |
Polar Pattern | Uni-Directional | Uni-directional | Uni-directional |
Output Impedance(Ohm) | 75-Balanced | 75-Balanced | 75-Balanced |
Sensitivity (±2dB) | -45dB | -45dB | -45dB |
Power Supply | Phantom 48V/DC3V | Phantom 48V | Phantom 48V |
Mic Length (mm) | 280 | 410 | 300 |
N.W. | 0.87kg | 1kg | 0.6kg |
Max Input Level | 126dB | 128dB | 128dB |
Base Dimension (WxDxH)mm | 94x143x44 | 95x138x40 | 81x110x36 |
Output/Indicator | Base Indicator | Base Indicator/Mic LED | Base Indicator |

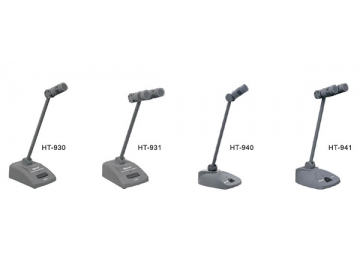

Technical Specifications of the HT-930, HT-931, HT-940, HT-941 Meeting Microphone
Model No. | HT-930 | HT-931 | HT-940 | HT-941 |
Capsule Type | Condenser | Condenser | Condenser | Condenser |
Frequency Response | 40Hz-18kHz | 30Hz-20kHz | 40Hz-18kHz | 40Hz-18kHz |
Polar Pattern | Hypercardioid | Hypercardioid | Hypercardioid | Hypercardioid |
Output Impedance(Ohm) | 75-Balanced | 75-Balanced | 75-Balanced | 75-Balanced |
Sensitivity (±2dB) | -45dB | -45dB | -45dB | -45dB |
Power Supply | Phantom 48V | Phantom 48V | Phantom 48V | Phantom 48V |
Mic Length (mm) | 200 | 200 | 200 | 200 |
N.W. | 0.63kg | 0.65kg | 0.63kg | 0.65kg |
Max Input Level | 135dB | 138dB | 128dB | 128dB |
Base Dimension (WxDxH)mm | 78x104x34 | 78x104x34 | 81x110x36 | 81x110x36 |
Output/Indicator | Base Indicator | Base Indicator | Base Indicator | Base Indicator |

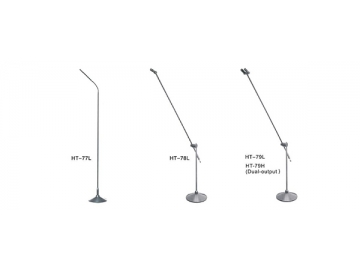

TechnicalSpecifications of the HT-77L,HT-78L, HT-79L Meeting Microphone
Model No. | HT-77L | HT-78L | HT-79L/HT-79H (Dual-output) |
Capsule Type | Condenser | Condenser | Dual-Condenser |
Frequency Response | 30Hz-16kHz | 30Hz-16kHz | 30Hz-18kHz |
Polar Pattern | Hypercardioid | Hypercardioid | Hypercardioid |
Output Impedance(Ohm) | 75-Balanced, 200-UnBalanced | 75-Balanced,200-UnBalanced | 75-Balanced, 200-UnBalanced |
Sensitivity (±2dB) | -43dB | -43dB | -43dB |
For more types, please download the microphone catalogue.
