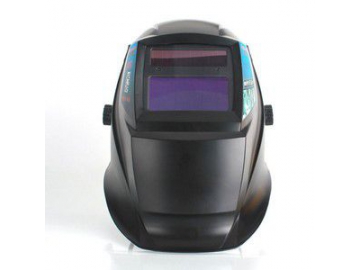

Provide reliable protection from radiation and spatter

Digital auto-darkening welding helmet adopts our independently developed MCU control chip and high-speed darkening software, greatly improving dimming response speed and anti-interference ability.

Features
  • In full conformity with American ANSI Z887.1 standard, European CE standard, and national standard prescribed by China National Quality Supervision and Testing Center of Labor Protection Products;
  • Adopting RILAND's independently developed MCU control chip;
  • Digital control for gentle handling, resulting quick and reliable dimming response;
  • Built-in lithium batteries eliminate the need for changing battery, significantly lowering the cost;
  • High-frequency interference filter helps efficiently block out sunlight interference;
  • High integration of components, ensuring high reliability;
  • Full-coverage shell protects the eyes and face from UV/IR radiation and spatter;
  • Great headgear comfort, without slag adhering;

Details
Independently developed MCU control chip
The MCU control chip contributes in shortening the signal transmission time and minimizing interference. With booster pump circuit technology that uses digital algorithm, the LCD lens darkens to a maximum shade in milliseconds when the arc is struck. The integrated battery circuitry enables reliable performance of the battery.
Fast response time
Our newly engineered software algorithm enables arc sensor more sensitive, the lens darken reaction time is approximately 0.1ms.
Built-in lithium battery
3.7V/200mA rechargeable lithium polymer batteries are used. The electric power can be obtained from the welding arc light or charged by sunlight.
High cost effectiveness
Integrated design greatly reduces pieces of components and saves cost, enabling welding operators to get high quality welding helmets at a competitive price.
Advanced digital control
Technology rivals that of world's renowned brands, but less expensive than the equivalent performance welding helmets.

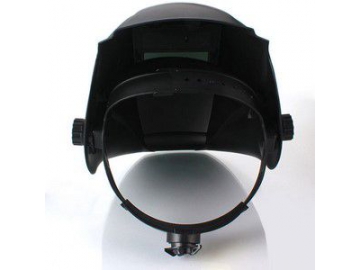

LCD lens and adjustable headband

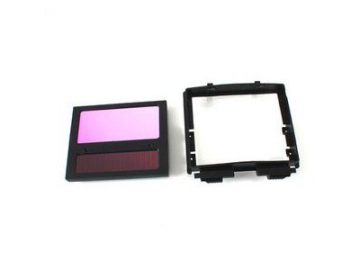

Easy and quick replacing of protective sheet
Specifications
Model RL301
Size of darkening filter (mm) 110×90×8
Observation window viewing area (mm) 92×42
Light state Shade 4
Shade range 4/10/13
Switch time 0.1ms
Response time 0.1ms
UV/IR protection DIN15< 0.0003%< 0.01%
Arc sensors 2
Power source Lithium battery (3.7V/200mA)
Working temperature -15℃-65℃
Grind mode Yes
Weight 480g
Certificates CE,ANSI,EN175,EN3
Warranty 1 year
