Features
  • Welding oscillator controls the welding torch with oscillating movement by simulating conditions of various welding modes;
  • Oscillation speed and amplitude are adjustable;
  • Torch holder can be adjusted in an angle range of 0-360°;
  • Oscillation amplitude of 0-8° in single direction;
  • Deliberate mechanical design, the motor runs at constant speed to enable the welding torch to operate with precise motion, efficiently avoiding the issue that the torch oscillation speed slows down at the both ends of the oscillation path when varying the rotation direction of motor, thus prolonging the service life of welding oscillator;

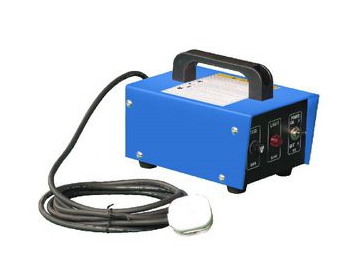

RL-30 Welding Oscillator

Our RL-30 welding oscillator has center dwell function, which means that the welding torch stays at the center point of the oscillation path when oscillator stops moving, therefore facilitating the angular alignment.

RL-32 Welding Oscillator

RL-32 welding oscillator can enable the welding torch to perform oscillation motion in a zigzag path, the oscillation speed and amplitude are adjustable.

RL-33 Welding Oscillator

RL-33 all-position welding oscillator allows to adjust the speed and left/center/right dwell times, suitable for various welding processes.

Specifications
Model RL-30 RL-32 RL-33
Oscillation speed (cycles/min) 74 74 74
Oscillation amplitude Radius 120mm 17 23 21
Radius 180mm 25 34 31
Radius 200mm 27 38 34
Weight (kg) 1 1.5 1.5
Left dwell time (S) - - 0-2.1
Center dwell time (S) - - 0-2.1
Right dwell time (S) - - 0-2.1
Delay time (S) - - 0-5.1
Max. load (kg) 4 4 4
Power supply (V) DC 24V DC 24V DC 24V
Output power (W) 12 12 15
Dimensions (Mm) 105×135×125 130×110×140 150×110×140
Welding positions Horizontal fillet welding, vertical fillet welding, horizontal groove welding, vertical groove welding, overhead welding, flat welding, etc.

Standard Accessories
  • Power supply

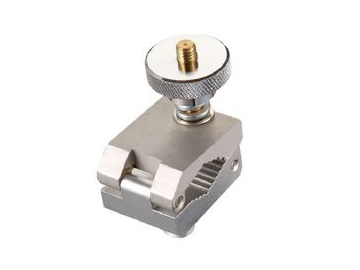

  • 32 torch holder

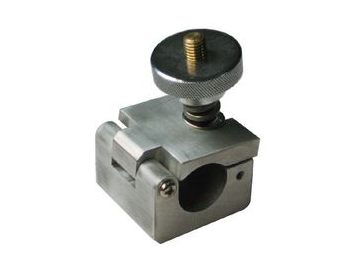

  • 20-1C torch holder
