Application
Landing valve used for fire fighting can be installed in fire hydrant system indoor or outdoor. Landing valve sometimes is also called as indoor fire hydrant, so it is usually installed in the buildings for wet-type fire hydrant system.

Technical Specification
Standard: Certificate to BS 5041-1 Approve by BSI
Body: Copper alloy, Thickness ≥3mm
Hand wheel: Grey cast iron or Aluminum alloy
Black cap: Copper alloy or Plastic
Inlet: Flanged or BSP Screwed
Outlet: Female instantaneous to BS336
Surface: Red or yellow painting
Test pressure: 22.5 bar
Flow rates: More than 8.5L/S
Fully open: 4.5 turns

Valve Size Range
Size Inlet Outlet
DN50 165 Flanged BS336
DN65 185 Flanged BS336
DN65 2.5''BSPT BS336
DN65 2.5''BSP BS336

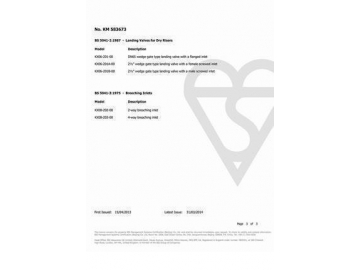

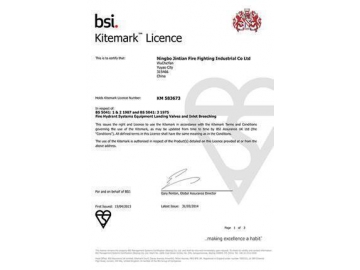

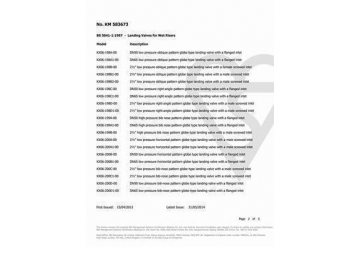

Certificate
