The tape finishing and starching machine carries out shaping, hardening, and whitening of different webbings to improve fabric quality.

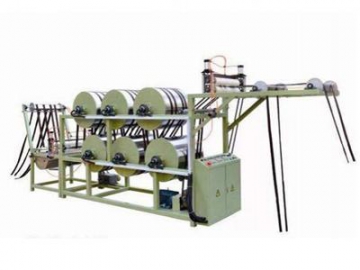

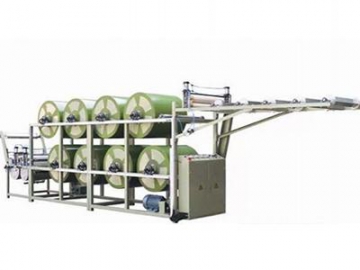

1.Double roller finishing and starching machine

The double roller finishing and starching machine simultaneously carries out fabric starching and shaping. 1 to 4 tapes can be processed simultaneously.

Two heating ways: electric-heating and gas-heating. Electric heating features a quick and stable heating performance, quickly increasing the webbing surface temperature to150℃-200℃. The temperature can also be adjusted according to customer needs.The gas heating method features an auto-ignition system and electromagnetic control valve, ensuring easy and safe operation.

Model Tapes Heating power Roller diameter Roller number Machine dimension
Horizontal type 1-4 18-32kW φ780×1500mm/
φ600×1500mm
4/6 3400×1900×2100mm
Vertical type 1-4 18-32kW φ780×1500mm/
φ600×1500mm
4/6 2200×1900×2100mm

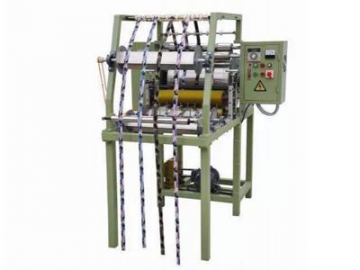

2. Single roller trademark finishing and starching machine

This machine is ideal for finishing and ironing of a variety of small tapes, including trademark tape, lace, and chiffon ribbons. 1 to 8 tape rolls can be processed simultaneously. Equipped with a variable frequency drive and electronic temperature controller, the temperature and speed are freely adjustable.

Model Tapes Heating power Roller diameter Roller number Machine dimension
Trademark 1-8 3-4.5kW φ600×600mm 1 2000×1300×1600mm

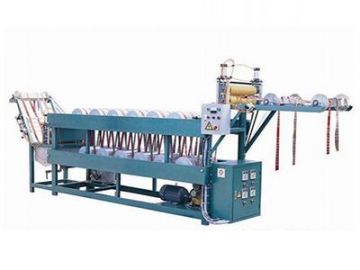

3. Multi-roller finishing and starching machine

With electric heating, the multi-roller finishing and starching machine carries out starching and shaping of a variety of fabrics. 1 to 12 tapes can be processed simultaneously.

Model Tapes Heating power Roller diameter Roller number Machine dimension
6 cylinder 1-12 12-24kW φ600×600mm/
φ780×780mm
6 5400×1100×2700mm
8 cylinder 1-12 12-24kW φ600×600mm/
φ780×780mm
8 7400×1100×2700mm
12 cylinder 1-12 12-24kW φ230×500mm 12 4000×800×1100mm
