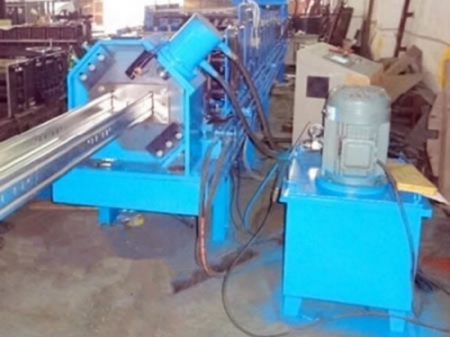

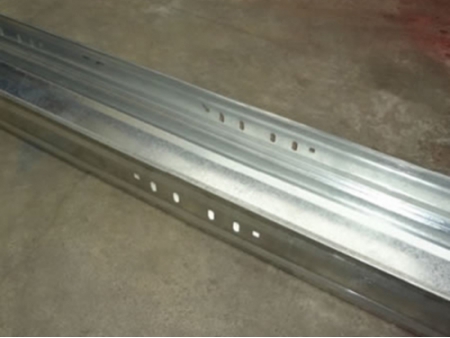

The roll forming machine is constructed for mass production of lightweight stud and track. The stud and track are structural framing components featuring lightweight and easy transportation, can be widely used in construction of hotels, airport terminal buildings, stations, playgrounds, etc.

Technical Parameters
Forming stations 10 stations
Forming roller material high grade Cr12
Shaft diameter Ø40mm
Transmission gear driven
Power 5.5kw
Cutting method servo driven continuous cutting
Control PLC
Hydraulic power 3.0KWX2
Working speed 40m/min
Hole punching speed 12m/min
Features
  • PLC control system ensures safe and smooth production;
  • Machine structure is welded steel plates, guaranteeing high durability without deformation;
  • Roll forming stations are made of high strength cast iron, providing long service life;
