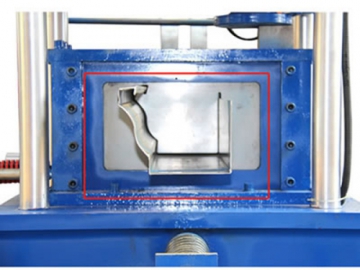

U Gutter Roll Forming Machine

U Gutter Roll Forming Machine
U Gutter Roll Forming Machine
U Gutter Roll Forming Machine
Request a Quote
Technical Parameters
Uncoiler passive uncoiling
Uncoiler load capacity 4T
Machine structure 300H steel, welded
Sidewall thickness 16mm
Shaft diameter 70mm
Main motor power 5.5KW
Working speed 8-10m/min
Hydraulic power 4.0KW
pressure 8-12Mpa
Hydraulic pump gear pump
Cutting method hydraulic cutting
Cutting blade material Cr12
Applicable sheet thickness ≤1.2 mm
Infeed width 400mm
Outfeed width 230mm
Control system PLC
Voltage 380V, 50HZ, 3 phase
Machine dimension 6200X1000X1200mm
