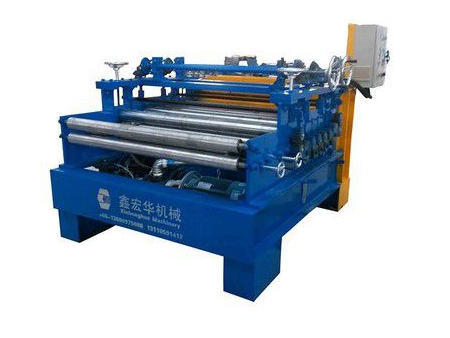

ZP2.0-1300 Flattening Cutting Machine
Request a Quote
ZP2.0-1300 flattening cutting machine is specially designed to level the wave material, and cut to length.
- Easy operation, low maintain cost
- Higher cost performance
- High quality with faster working speed, max speed can reach 30m/min
| Model | ZP2.0-1300 |
| Dimension | 2100*2400*1500mm |
| Hydraulic Motor Power | 7.5kW |
| Motor Power | 3.7kW |
| Forming Speed | 10-15m/min |
| Voltage | 380V/50HZ/3PH |
| Max. Width | 1300mm |
| Cutting Tolerance | ±0.5mm within 2 meters length,±1mm for diagonal within 2meters length |
| Size of Flattening Roller | 85mm, total 13pcs |
| Slitter Quantity | According to your request |
| Thickness | 0.5-2.0mm |

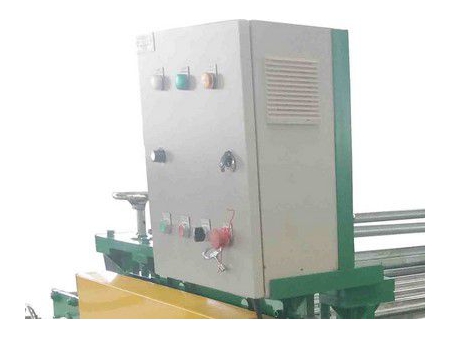

| Control System | PLC Control |
-
-

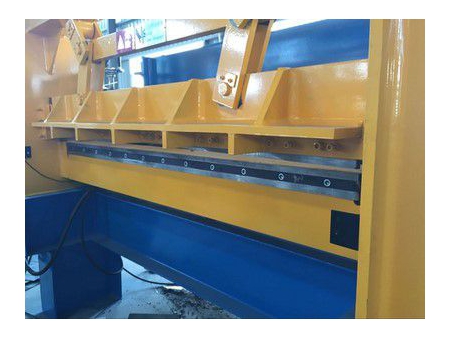

Cutter material is made of Cr12Mov mold steel, with HRC58-60 heat treatment for high quality and long service life.
-
-
Shaft is made by high quality 40Cr steel with CNC lathes for long service life.
Body frame is welded with use 400# H bean.
-
-
PLC control system can be chosen from Schneider, Siemens, and Delta
- Main machine
- 5 Tons manual uncoiler
- Flattening device
- Hydraulic cutting device
- Hydraulic motor system
- PLC computer controlling system with touch screen (brand: Schneider)
- Tools
- Operation manual
