Description:

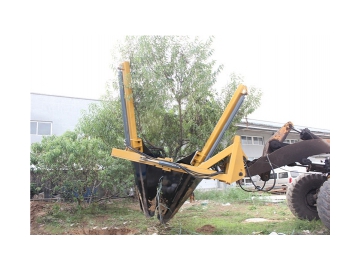

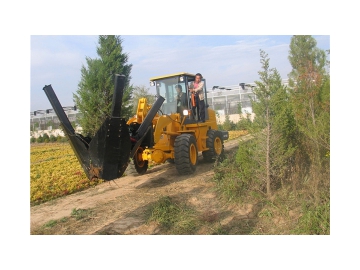

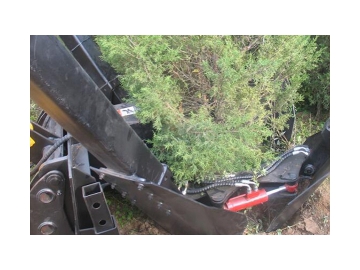

Tree transplanter sticks excavation blade in soil, make tree and soil around surrounded by 4 excavation blades. Tree mover keeps soil around the tree whole when excavating the tree, maximally keeps from damaging tree’s root. Tree transplanter is vastly applied for excavating, moving and planting trees at soil that’s not very hard, such as sandy soil, loess, etc.

Specifications of Tree Transplanter :
Model LTT150 LTT200
Overall Length 2030 mm 3368 mm
Overall Width 2030 mm 3085 mm
Overall High 890 mm 3600 mm
Digging Depth 1030 mm 1350 mm
Fit Tree Diameter 0-150 mm 0-200 mm
Ball Diameters Available 1270 mm 1905 mm
Blade Angle 30° 25°
Working Pressure 12-21 MPa 12-21 MPa
The total height at which the blade rises to its maximum 3660 mm 3660 mm
The total height at which the blade falls to its lowest level 3660 mm 3600 mm
Suitable Models 3t/5t 6t/7t
