EMS 05 Single Flute End Mill, Long Neck
Request a Quote
- Made from uncoated and coated prime grade carbide
- Provides exceptional tool life improvements in the machining of various materials
- Available in high speed steel or solid carbide in a variety of lengths, angles and standards

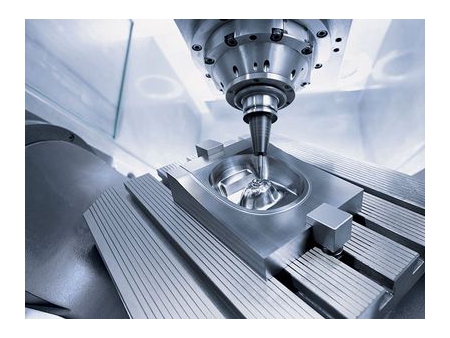

Application
Product Specifications
| Coating | DLC/Diamond | Work Material | Aluminum / Copper Alloy / Acrylic / Wood / Resin |
| Helix Angle | 30°/35°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Single Flute, Upcut Spiral with Long Neck
| Mill Dia. D1 | Shank Dia. D2 | Effective Length L3 | Flute length L1 | O.A.L L2 | AITin Coated Click to Order | Non-Coated Click to Order |
| 1.0 | 6.0 | 7.0 | 4 | 50 | | |
| 1.5 | 6.0 | 11.0 | 7 | 50 | | |
| 2.0 | 6.0 | 12.0 | 4 | 50 | | |
| 2.0 | 6.0 | 14.0 | 7 | 50 | | |
| 3.0 | 6.0 | 14.0 | 4 | 50 | | |
| 3.0 | 6.0 | 14.0 | 8 | 50 | | |
| 3.0 | 6.0 | 17.0 | 4 | 50 | | |
| 3.0 | 6.0 | 17.0 | 8 | 50 | | |
| 3.0 | 6.0 | 21.0 | 4 | 50 | | |
| 3.0 | 6.0 | 21.0 | 8 | 50 | | |
| 4.0 | 6.0 | 18.0 | 5 | 50 | | |
| 4.0 | 6.0 | 18.0 | 10 | 50 | | |
| 4.0 | 6.0 | 21.0 | 5 | 50 | | |
| 4.0 | 6.0 | 21.0 | 10 | 50 | | |
| 5.0 | 6.0 | 22.0 | 5 | 50 | | |
| 5.0 | 6.0 | 22.0 | 12 | 50 | | |
| 6.0 | 6.0 | 24.0 | 5 | 60 | | |
| 6.0 | 6.0 | 24.0 | 14 | 50 | | |
| 6.0 | 6.0 | 30.0 | 5 | 60 | | |
| 6.0 | 6.0 | 30.0 | 14 | 60 | | |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
