Application

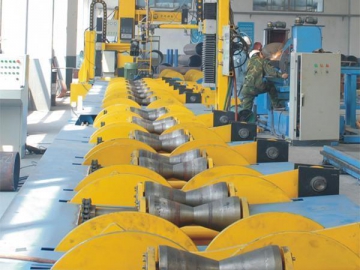

The steel pipe cut-to-length machine is suitable for automated pipe production in large and middle scale shipbuilding plant and marine engineering.

Parameters of different product models
1. SMG200 Small Diameter Steel Pipe Cut-to-Length Machine
Pipe diameter 100-200mm
Max processing length of pipe 10m or determined by the users
Max linear speed of the conveyor 20m/min
Pipe cutting length error ≤±1mm
Pipe cutting length 200-2000mm
Total length of cutting line 46000mm(including loading, unloading frame)
Total width of the loading frame 3000mm
Operation mode Automatic, manual
Compressed air 0.6Mpa, flux 2m3/min
2. ZMG Middle Diameter Steel Pipe Cut-to-Length Machine
1 Pipe diameter mm Big pipe: 500-1200
Small pipe: 100-200
2 Pipe length mm Determined by the users
3 Pipe wall thickness mm Flame cutting: 6-80mm
4 Control axis mm 2 axis
5 Cutting torch mm 1
6 Cutting mode Flame cutting

Features and technical description
The steel pipe cut-to-length machine has the following advantages

1. The machine can realize concentrated computer control and automated processing of the whole process from material feeding, cut-to-length, label printing, sorting and collection of pipe fittings etc.
2. It has good reliability, simple operation and is fully automated.
3. This cut-to-length machine is the technical and equipment foundation for realizing advanced techniques such as welding prior to bending, material feeding with no waste etc.
4. The production efficiency and quality is greatly improved.

Jinfeng introduction
Jinfeng has 2 large specified accessory warehouse with sufficient stock, so that we can provide service in time.
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd hires senior engineers from ESAB to lead mechanical department, electrical department and software department. There are 80 people in the team in total. They will carry out development and design of various structural steel H beam production lines, so that we have technical guarantee.

Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers and 300 equipment sets such as CNC grinding machine, drilling machine and milling machine etc. We also have specified hardware processing workshop, plate welding workshop, assembly shop, packaging shop, painting and drying shop etc.

We have a stable sales team. All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services rapidly, in time and expertly. Our executive vice president leads an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
