Chuck Type Steel Pipe Cutting Machine
Application
The chuck type steel pipe cutting machine is mainly used for thermal cutting of the intersecting line and end of various pipeline systems. The applicable pipe material is mild carbon steel.
| Pipe diameter | mm | 60-600mm,90-900mm,150-1200mm |
| Pipe length | mm | 600~12000mm or At customer's choice |
| Pipe wall thickness | mm | Plasma cutting thickness: according to the power supply value; Flame cutting thickness: 6-80mm |
| Control axis | mm | 5-axis or 6-axis |
| Cutting torch | mm | 1 |
| Cutting mode | Plasma cutting or flame cutting | |
Features
1. The chuck can be divided into three-jaw, four-jaw and five-jaw self-centering chuck. The three-jaw chuck is generally used for pipes of which the diameter is less than 600mm. We will only choose four-jaw chuck at the conditions that the pipe diameter is greater than 600mm or the pipe wall to be cut is quite thick.

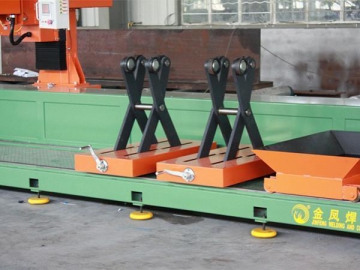

2. The X axis (horizontal main axis rotary) of the chuck type steel pipe cutting machine adopts three-jaw chuck for workpiece clamping and rotating. The longitudinal mobile rack is equipped with three groups of adjustable roller carriers which can be used for straightness adjustment of workpiece, thus ensuring the cutting precision of pipes. This machine can be used for long-time continuous cutting. The plasma head and the flame head can be used in alternation.
Jinfeng introduction
Jinfeng has 2 large specified accessory warehouse with sufficient stock, so that we can provide service in time.
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd hires senior engineers from ESAB to lead mechanical department, electrical department and software department. There are 80 people in the team in total. They will carry out development and design of various structural steel H beam production lines, so that we have technical guarantee.
Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers and 300 equipment sets such as CNC grinding machine, drilling machine and milling machine etc. We also have specified hardware processing workshop, plate welding workshop, assembly shop, packaging shop, painting and drying shop etc.
We have a stable sales team. All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services rapidly, in time and expertly. Our executive vice president leads an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
