Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)

Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)
Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)
Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)
Automatic Pulse Tube Sheet Welding Machine (GTAW/TIG)
Request a Quote

Model: PAAWM-80A

Technical Parameters

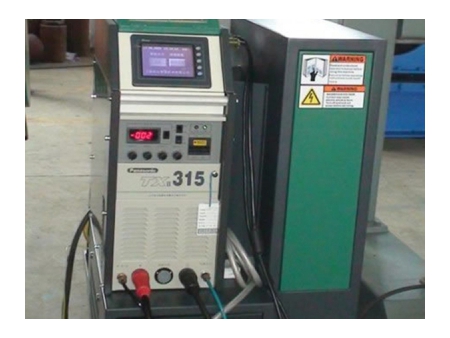

  • Welding Source
    Model of the Welding Source: Panasonic TIGSTAR400
    Type of Power Source: IGBT inversion
    Welding Current: 4-315A
    Duty Cycle: 315A 60; 244A 100%
    Rated Load Voltage: 70V
    Rated Power: 9.5 kw
    Fluctuation Range of Input Voltage Allows: 380v±10%
    Frequency: 50/60Hz

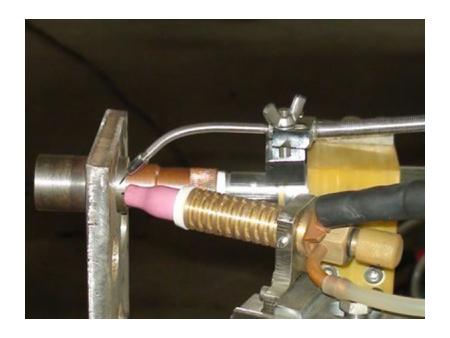

  • Welding Head
    Pipe Diameter: Φ8~Φ80mm (or as per request)
    Pipe Wall Thickness: 0.5-6.5mm
    Maximum Length of Tube Elongation: 10mm
    Maximum Depth of Tube Indentation: 2mm
    Feeding Wire Adjustable Angle: ≤45°
    Feeding Speed: 0.1~1.5m/min
    Dia. of Filler Wire: 0.8mm
    Rev Speed of Head: 0.15~6r /min
    Welding Speed: 50~150mm/min
    Tungsten Adjustable Angle: ≤45°
    Positioning Spindle Cooling: Automatic forced cycle water-cooled
  • Program-controlled System
    Welding Current Adjustment Range: 4~315A
    Current Rise Time: 0.1~20s
    Current Fall Time: 0.1~20s
    Pulse Frequency: 0.5~500Hz
    Duty Cycle Adjustment Range: 10%~50%
    Aspirated Time in Advance: 1~20s
    Time Lag Aspirated: 2-20s
    Feeding Speed Adjustment Range: 0~1.5m/min
    Welding Head Rev Speed Adjustment Range: 0.15~6r/min
    Built-in Storage Capacity of 100 Welding Code
    Can Partition Paragraph: 1-6 paragraph
    Display: LCD
  • Gantry and 5D System
    Lateral Movement Stroke: 16000mm
    Vertical Movement Stroke: 16000mm
    Axial Movement Stroke: 300mm
