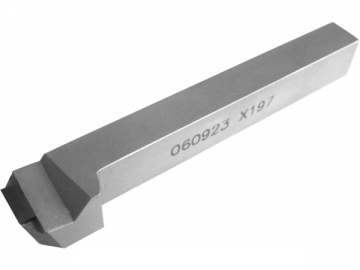

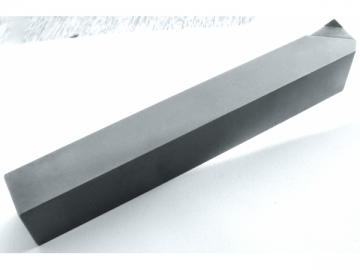

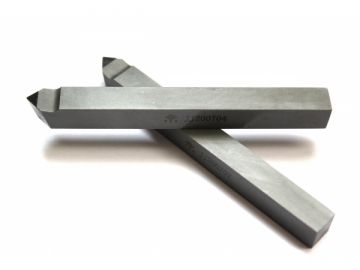

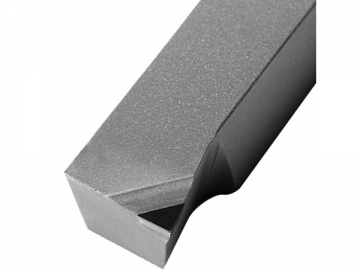

PCD/PCBN External Turning Tools
PCD External Truning Tool, PCBN External Turning Tool
Features
1. The external turning tool can cut the material from different direction.
2. The PCD or PCBN external turning tool can realize fast speed turning, hardmaterial turning, and dry turning.
3. According to the need of our customers, we can design and manufacture theexternal turning tool with different specifications, by changing the sizes ofthe cutter arbor, rake angle, clearance angle, tool cutting edge angle, toolminor cutting edge angle, nose angle, cutting edge form and the width of thechamfering.
Application

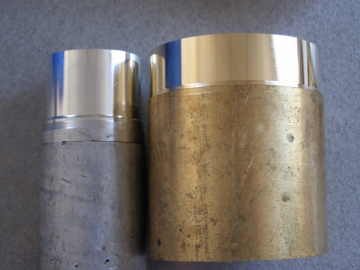

The PCD external turning tool is used forthe external turning of copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal work pieces such as composite material.
The PCBN external turning tool is used for the external turning of hardenedsteel, hard cast iron, grey cast iron and iron series metal work pieces.
Technical Specifications

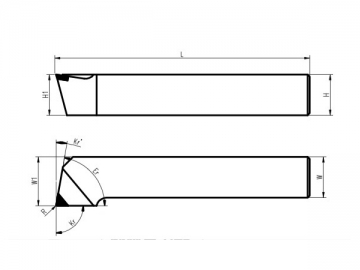

| Drawing of PCD/PCBN External Turning Tool | Dimension (mm) | ||||||
| | Kr° | W1 | H | W | L | Er° | R |
| 95 | 12 | 10 | 10 | 120 | 70 | 0.4 | |
| 95 | 14 | 12 | 12 | 120 | 80 | 0.4 | |
| 95 | 16 | 14 | 14 | 120 | 70 | 0.4 | |
| 95 | 23 | 20 | 20 | 120 | 90 | 0.4 | |
Material
The tool bit of the external turning tools uses PCBN or PCD blanks manufacturedby world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH,SUMITOMO and TOMEI. The cutter arboruses high quality tungsten carbide and tool steel.
World is a PCD external turning tool manufacturer and supplier, based in
